TF & TD Series
Hot Runner Systems

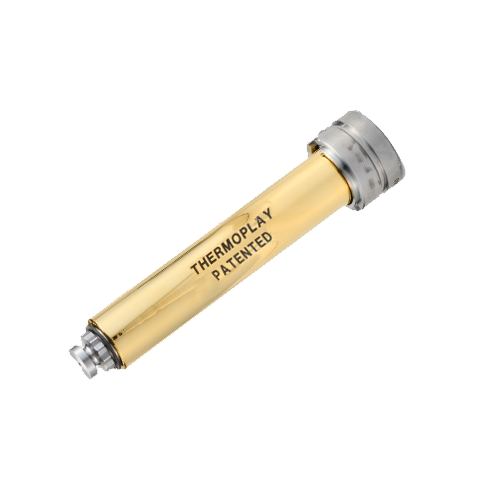

Thermoplay hot runner nozzles are engineered to deliver precision, efficiency, and durability in every application.
Designed for the needs of modern injection molding, they combine advanced technology with easy maintenance to maximize production performance.





  • icone_improved_windows_process

    Improved process window
    Greater flexibility in molding conditions with consistent performance.

  • icone_increased_flow_channel_v

    Increased flow channels
    Optimized melt flow reduces injection pressure loss and improves efficiency.

  • icone_termocoppia_v

    Special patented heater
    Ensures a uniform thermal profile for stable production while delivering significant energy savings.

  • icone_tips

    Tips in special steel
    Provide optimal thermal conduction and high wear resistance, with a wide range of types suitable for the injection of the most commonly used polymers.

    Download Material Tables
  • icone_different_lenght_g

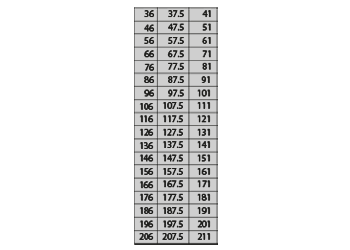

    Different lengths available
    Adaptable to a variety of applications and requirements.

  • icone__termocoppia_v_vert

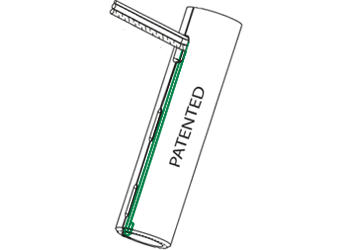

    Accurate temperature control
    Thermocouple positioned close to the tip zone for precise temperature reading.

  • icone_easy_maintenance_n

    Easy maintenance
    Heater and thermocouple can be replaced directly on the injection machine, minimizing downtime.

  • icone_double_sealing_v

    Double sealing system
    Reliable sealing on both the nozzle tip and head ensures safe and stable operation.

TF & TD Series
3-D Data & Technical Information Download

  • Improved process window
    Greater flexibility in molding conditions with consistent performance.

  • Increased flow channels
    Optimized melt flow reduces injection pressure loss and improves efficiency.

  • Special patented heater
    Ensures a uniform thermal profile for stable production while delivering significant energy savings.

  • Tips in special steel
    Provide optimal thermal conduction and high wear resistance, with a wide range of types suitable for the injection of the most commonly used polymers.

    Download Material Tables

  • Different lengths available
    Adaptable to a variety of applications and requirements.

  • Accurate temperature control
    Thermocouple positioned close to the tip zone for precise temperature reading.

  • Easy maintenance
    Heater and thermocouple can be replaced directly on the injection machine, minimizing downtime.

  • Double sealing system
    Reliable sealing on both the nozzle tip and head ensures safe and stable operation.

Filter

Nozzle Type

Sliding Nozzle
Single Nozzle
null
Sliding Nozzle
Single nozzle

Gate

Thermal Gate
Valve Gate
On Sprue
null
Multi-Tip Thermal Gate
Edge Gate Thermal Gate

Name

Flow Bore (mm)

Cut out (mm)

Sealing (mm)

Support Ring (mm)

Download

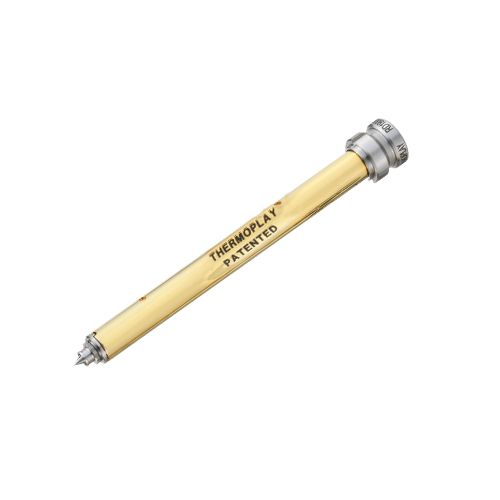

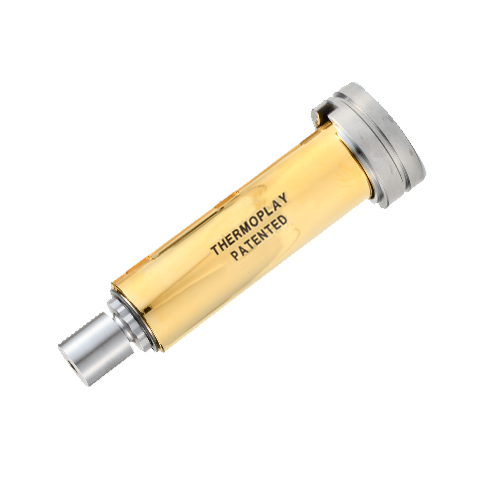

TF / TF6 12

Thermal Gate Nozzles & Single Nozzles

  • Direct Injection
  • Valve Gate Injection
Image Name Description Product
Catalog		 3D data Flow Bore
Ø mm		 Cut out
Ø mm		 Support Ring
Ø mm		 Sealing
Ø mm

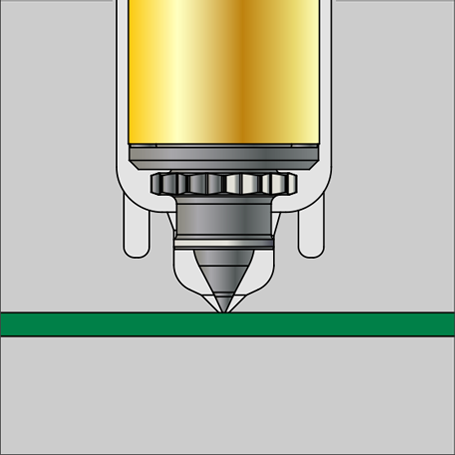

TF 12-1 TF 12-1
Nozzle for critical vestige, not for filled/abrasive materials.
 TF 12-1 TF 12-1 3 12 16.5 5.5
TF6 12-1 TF6 12-1
Nozzle for critical vestige, not for filled/abrasive materials.
 TF6 12-1 TF6 12-1 3 12 50 5.5

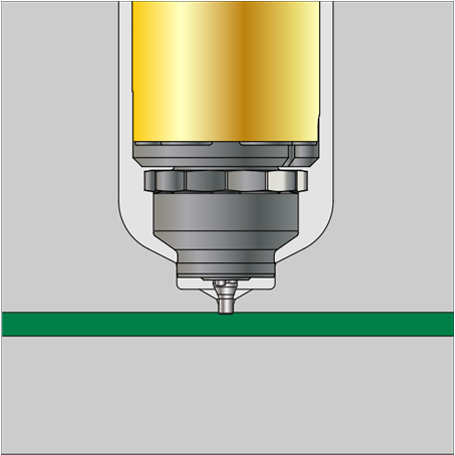

TF 12-3 TF 12-3
Nozzle with shut-off valve for optimum gate aesthetics, not for abrasive materials.
 TF 12-3 TF 12-3 4 12 16.5 5.5

Download

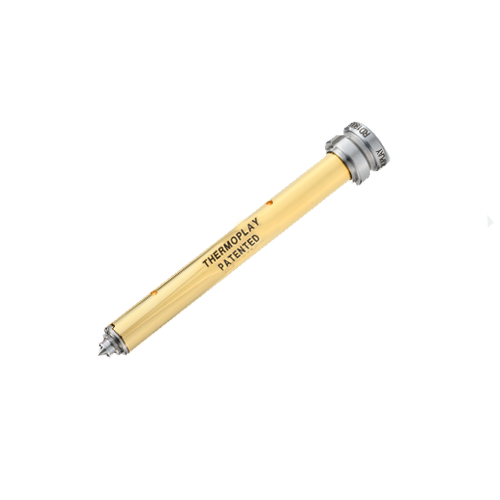

TF / TF6 17

Thermal Gate Nozzles & Single Nozzles

  • Direct Injection
Image Name Description Product
Catalog		 3D data Flow Bore
Ø mm		 Cut out
Ø mm		 Support Ring
Ø mm		 Sealing
Ø mm

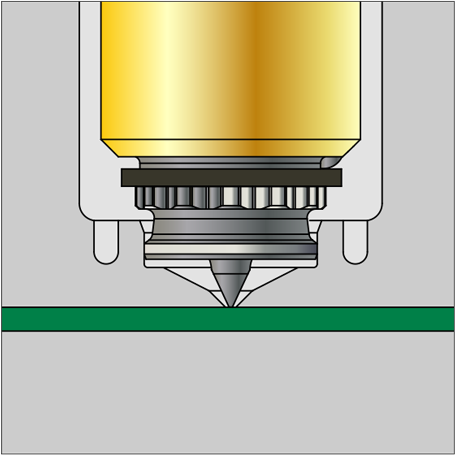

TF 17-1 TF 17-1
Nozzle for good vestige, suitable for all polymers, also abrasive fillers.
 TF 17-1 TF 17-1 5 17.5 26 10
TF6 17-1 TF6 17-1
Nozzle for good vestige, suitable for all polymers, also abrasive fillers.
 TF6 17-1 TF6 17-1 5 17.5 26 10
TF 17-1MD TF 17-1MD
Nozzle for good vestige, suitable for all polymers, also abrasive fillers.
 TF 17-1MD TF 17-1MD 5 17.5 26 10
TF6 17-1MD TF6 17-1MD
Nozzle for good vestige, suitable for all polymers, also abrasive fillers.
 TF6 17-1MD 5 17.5 42 10

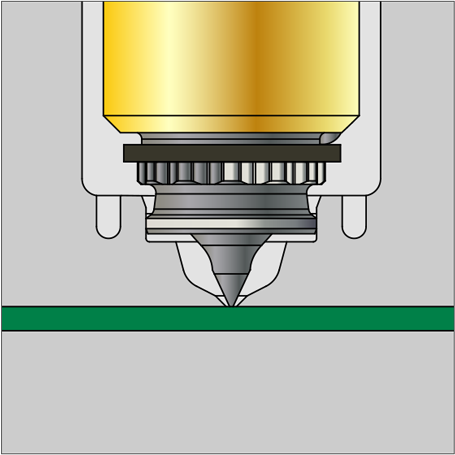

TF 17-1B15 TF 17-1B15
Nozzle for good gate appearance, extended tip for limited space, suited for thin fast-cycle parts. Handles abrasive fillers up to 20%, not for quick color changes.
 TF 17-1B15 TF 17-1B15 5 17.5 26 10
TF6 17-1B15 TF6 17-1B15
Nozzle for good gate appearance, extended tip for limited space, suited for thin fast-cycle parts. Handles abrasive fillers up to 20%, not for quick color changes.
 TF6 17-1B15 TF6 17-1B15 5 17.5 42 10
TF 17-1B15MD TF 17-1B15MD
Nozzle for good gate appearance, extended tip for limited space, suited for thin fast-cycle parts. Handles abrasive fillers up to 20%, not for quick color changes.
 TF 17-1B15MD TF 17-1B15MD 5 17.5 26 10
TF6 17-1B15MD TF6 17-1B15MD
Nozzle for good gate appearance, extended tip for limited space, suited for thin fast-cycle parts. Handles abrasive fillers up to 20%, not for quick color changes.
 TF6 17-1B15MD TF6 17-1B15MD 5 17.5 42 10

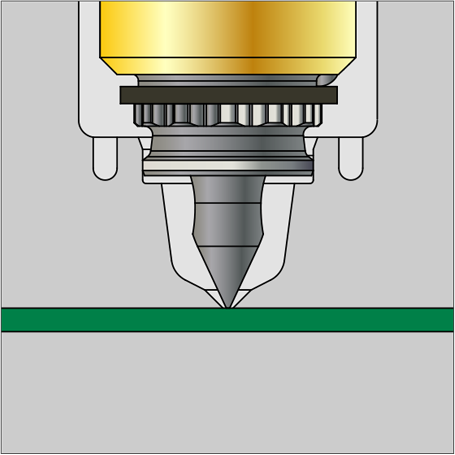

TF 17-1B50 TF 17-1B50
Nozzle for good gate appearance, extended tip for tight spaces, ideal for thin fast-cycle parts. Suitable with up to 20% abrasive fillers, not for quick color changes.
 TF 17-1B50 TF 17-1B50 5 17.5 26 10
TF6 17-1B50 TF6 17-1B50
Nozzle for good gate appearance, extended tip for tight spaces, ideal for thin fast-cycle parts. Suitable with up to 20% abrasive fillers, not for quick color changes.
 TF6 17-1B50 TF6 17-1B50 5 17.5 42 10

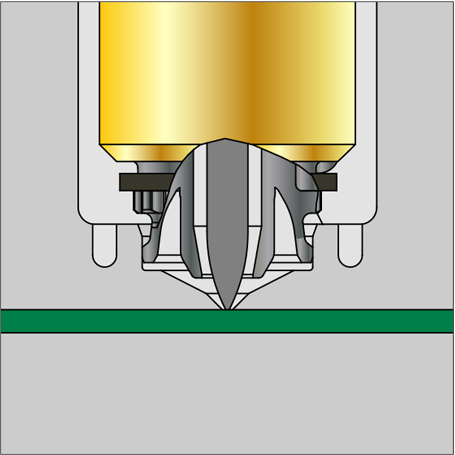

TF 17-1GLT TF 17-1GLT

Nozzle for metal-filled materials and high-appearance parts. Special tip ensures uniform flow, ideal for cosmetics and packaging.

 TF 17-1GLT TF 17-1GLT 5 17.5 26 10
TF6 17-1GLT TF6 17-1GLT

Nozzle for metal-filled materials and high-appearance parts. Special tip ensures uniform flow, ideal for cosmetics and packaging.



 TF6 17-1GLT TF6 17-1GLT 5 17.5 42 10

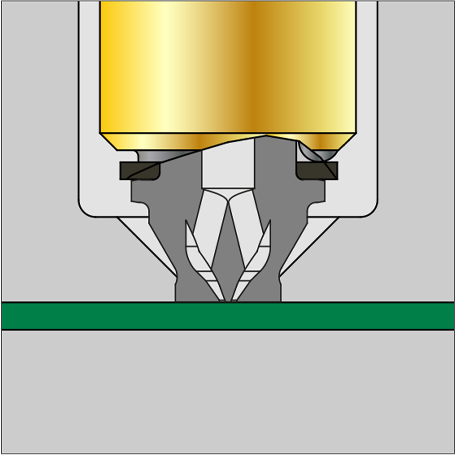

TF 17-1D TF 17-1D
Nozzle for good gate appearance, suitable for abrasive fillers. Die can be machined for sealing; leaves circular witness mark.
 TF 17-1D TF 17-1D 5 17.5 26 6
TF6 17-1D TF6 17-1D
Nozzle for good gate appearance, suitable for abrasive fillers. Die can be machined for sealing; leaves circular witness mark.



 TF6 17-1D TF6 17-1D 5 17.5 42 6

Download

TF / TF6 17

Thermal Gate Nozzles & Single Nozzles

  • On Sprue Injection
Image Name Description Product
Catalog		 3D data Flow Bore
Ø mm		 Cut out
Ø mm		 Support Ring
Ø mm		 Sealing
Ø mm

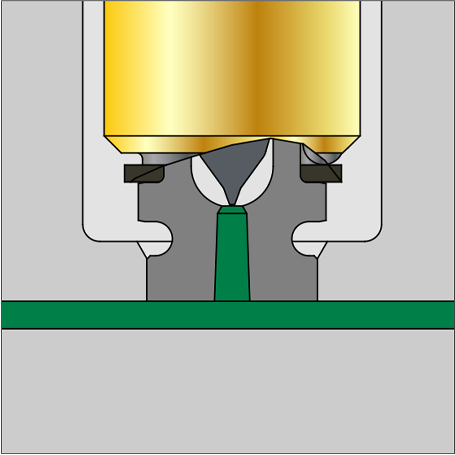

TF 17-1DSLA TF 17-1DSLA
Nozzle for sprues or direct gating, suitable for abrasive fillers. Stronger tip for larger sprues; die seal machined from cavity side. Leaves circular witness mark.
 TF 17-1DSLA TF 17-1DSLA 5 17.5 26 10
TF6 17-1DSLA TF6 17-1DSLA
Nozzle for sprues or direct gating, suitable for abrasive fillers. Stronger tip for larger sprues; die seal machined from cavity side. Leaves circular witness mark.



 TF6 17-1DSLA TF6 17-1DSLA 5 17.5 42 10

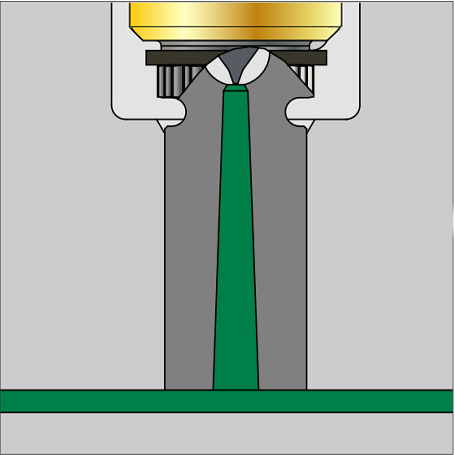

TF 17-1DSLU TF 17-1DSLU
Nozzle for sprues or direct gating, suitable for abrasive fillers. Strengthened, longer tip for larger sprues and mould profile shaping; die seal machined from cavity side. Leaves circular witness mark.
 TF 17-1DSLU TF 17-1DSLU 5 17.5 26 10
TF6 17-1DSLU TF6 17-1DSLU
Nozzle for sprues or direct gating, suitable for abrasive fillers. Strengthened, longer tip for larger sprues and mould profile shaping; die seal machined from cavity side. Leaves circular witness mark.



 TF6 17-1DSLU TF6 17-1DSLU 5 17.5 42 10

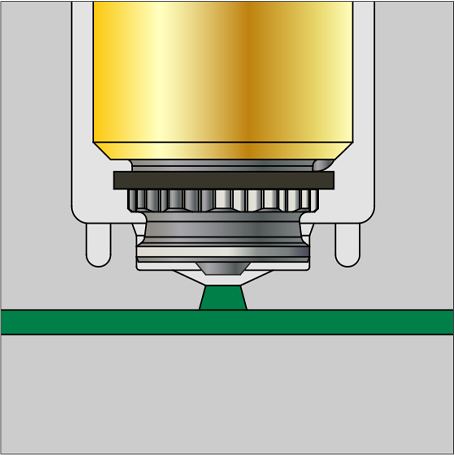

TF 17-2 TF 17-2
The nozzle is suitable for sprue or cavity molding, leaving a visible injection mark. It works with all polymers, including abrasive fillers, but not with drool-prone materials.
 TF 17-2 TF 17-2 5 17.5 26 10
TF6 17-2 TF6 17-2
The nozzle is suitable for sprue or cavity molding, leaving a visible injection mark. It works with all polymers, including abrasive fillers, but not with drool-prone materials.
 TF6 17-2 TF6 17-2 5 17.5 42 10

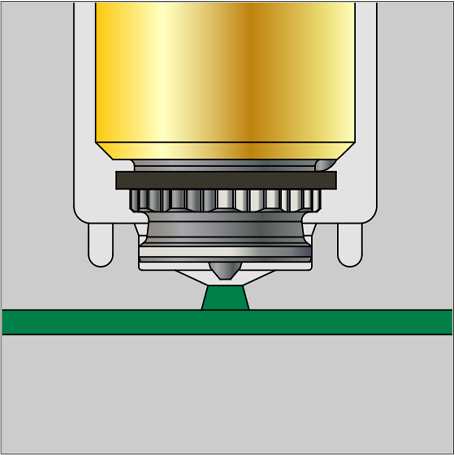

TF 17-2P TF 17-2P
The nozzle can inject onto the sprue or directly into the cavity, leaving a visible injection mark. It is well suited for drool-prone materials and also compatible with abrasive fillers.
 TF 17-2P TF 17-2P 5 17.5 26 10
TF6 17-2P TF6 17-2P
The nozzle can inject onto the sprue or directly into the cavity, leaving a visible injection mark. It is well suited for drool-prone materials and also compatible with abrasive fillers.
 TF6 17-2P TF6 17-2P 5 17.5 42 10

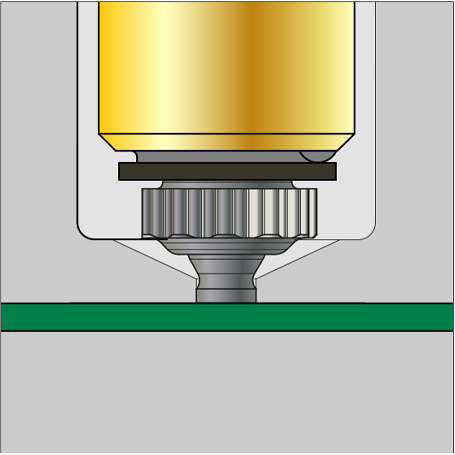

TF 17-2DSTD TF 17-2DSTD
The nozzle is suitable for parts where gate vestige is not critical. It can be sealed from the cavity side, leaving a circular tip mark on the part, and is recommended only for high-fluidity materials.
 TF 17-2DSTD TF 17-2DSTD 5 17.5 26 3.5
TF6 17-2DSTD TF6 17-2DSTD
The nozzle is suitable for parts where gate vestige is not critical. It can be sealed from the cavity side, leaving a circular tip mark on the part, and is recommended only for high-fluidity materials.
 TF6 17-2DSTD TF6 17-2DSTD 5 17.5 42 3.5
TF 17-2DSPR TF 17-2DSPR
The nozzle is suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. It can be sealed from the cavity side but is not suitable for drool-prone materials.
 TF 17-2DSPR TF 17-2DSPR 5 17..5 26 3.5
TF6 17-2DSPR TF6 17-2DSPR
The nozzle is suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. It can be sealed from the cavity side but is not suitable for drool-prone materials.
 TF6 17-2DSPR TF6 17-2DSPR 5 17..5 42 3.5

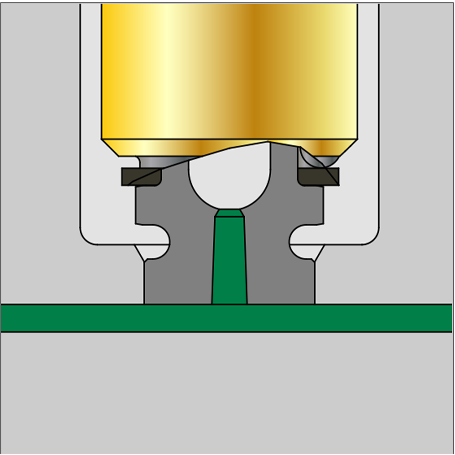

TF 17-2DSLA TF 17-2DSLA
The nozzle is suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. It can be sealed from the cavity side, and compared to the TF-2DSPR, has a reinforced tip for larger sprues. Not suitable for drool-prone materials.
 TF 17-2DSLA TF 17-2DSLA 5 17.5 26 10
TF6 17-2DSLA TF6 17-2DSLA
The nozzle is suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. It can be sealed from the cavity side, and compared to the TF-2DSPR, has a reinforced tip for larger sprues. Not suitable for drool-prone materials.
 TF6 17-2DSLA TF6 17-2DSLA 5 17.5 42 10
TF 17-2DSLU TF 17-2DSLU
Nozzle suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. Compared to the TF-2DSPR, the tip is reinforced for larger sprues, and compared to the TF-2DSLA, it is longer and can be shaped to match the part’s profile. Not suitable for drool-prone materials.
 TF 17-2DSLU TF 17-2DSLU 5 17.5 26 10
TF6 17-2DSLU TF6 17-2DSLU
Nozzle suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. Compared to the TF-2DSPR, the tip is reinforced for larger sprues, and compared to the TF-2DSLA, it is longer and can be shaped to match the part’s profile. Not suitable for drool-prone materials.
 TF6 17-2DSLU TF6 17-2DSLU 5 17.5 42 10

Download

TF / MO 17

Valve Gate Nozzles & Single Nozzles

  • Valve Gate Injection



Image Name Description Product
Catalog		 3D data Flow Bore
Ø mm		 Cut out
Ø mm		 Support Ring
Ø mm		 Sealing
Ø mm

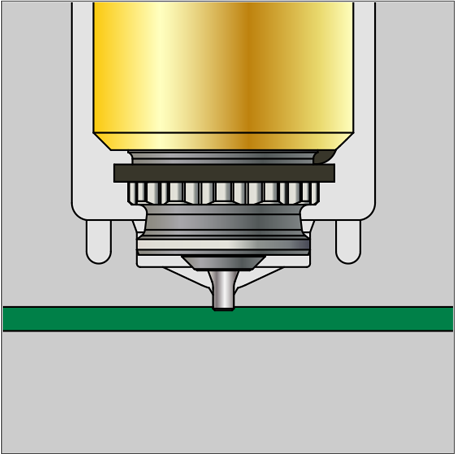

TF 17-3 TF 17-3
The valve-gate nozzle is suitable for molding parts requiring optimal gate aesthetics and can also handle reinforced plastics with abrasive fillers.
 TF 17-3 TF 17-3 5 17.5 26 10
MO 17-3 MO 17-3
The valve-gate nozzle is suitable for molding parts requiring optimal gate aesthetics and can also handle reinforced plastics with abrasive fillers.
 MO 17-3 MO 17-3 5 17.5 94 10

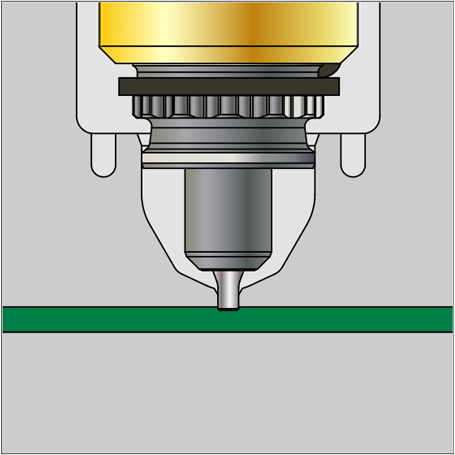

TF 17-3B TF 17-3B
Nozzle with prolonged tip for restricted areas, ideal for thin-walled, fast-cycle parts with good gate aesthetics. Suitable for abrasive-filled materials, but not for polycarbonate or similar.
 TF 17-3B TF 17-3B 5 17.5 26 10
MO 17-3B MO 17-3B
Nozzle with prolonged tip for restricted areas, ideal for thin-walled, fast-cycle parts with good gate aesthetics. Suitable for abrasive-filled materials, but not for polycarbonate or similar.
 MO 17-3B MO 17-3B 5 17.5 94 10

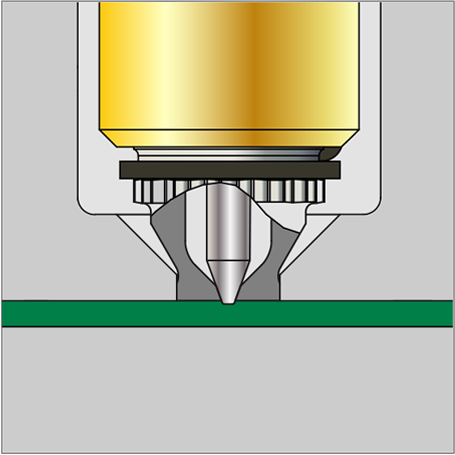

TF 17-3D TF 17-3D
Valve-gate nozzle for optimal gate aesthetics and abrasive-filled materials; seat machinable from cavity side, leaving a circular tip mark.
 TF 17-3D TF 17-3D 5 17.5 26 6
MO 17-3D MO 17-3D
Valve-gate nozzle for optimal gate aesthetics and abrasive-filled materials; seat machinable from cavity side, leaving a circular tip mark.
 MO 17-3D MO 17-3D 5 17.5 94 6

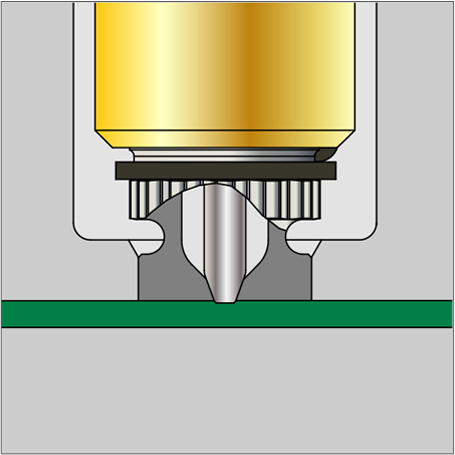

TF 17-3DSLA TF 17-3DSLA
Valve-gate nozzle for parts requiring optimal gate aesthetics and abrasive-filled materials; seat machinable from cavity side, reinforced tip for larger injection points, leaving a visible circular mark.
 TF 17-3DSLA TF 17-3DSLA 5 17.5 26 10
MO 17-3DSLA MO 17-3DSLA
Valve-gate nozzle for parts requiring optimal gate aesthetics and abrasive-filled materials; seat machinable from cavity side, reinforced tip for larger injection points, leaving a visible circular mark.
 MO 17-3DSLA MO 17-3DSLA 5 17.5 94 10

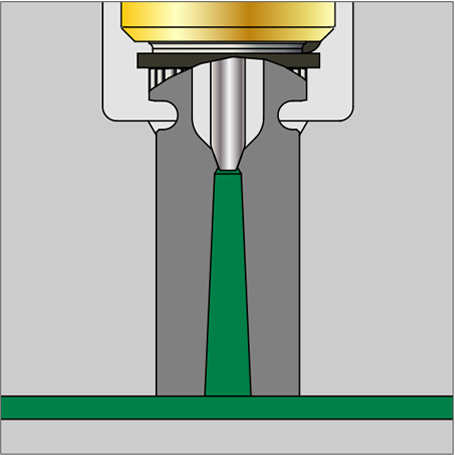

TF 17-3DSLU TF 17-3DSLU
Valve-gate nozzle for optimal gate aesthetics and abrasive materials; cavity-side machinable seat, reinforced tip for larger or shaped sprues, leaving a circular mark.
 TF 17-3DSLU TF 17-3DSLU 5 17.5 26 10
MO 17-3DSLU MO 17-3DSLU
Valve-gate nozzle for optimal gate aesthetics and abrasive materials; cavity-side machinable seat, reinforced tip for larger or shaped sprues, leaving a circular mark.
 MO 17-3DSLU MO 17-3DSLU 5 17.5 94 10

Download

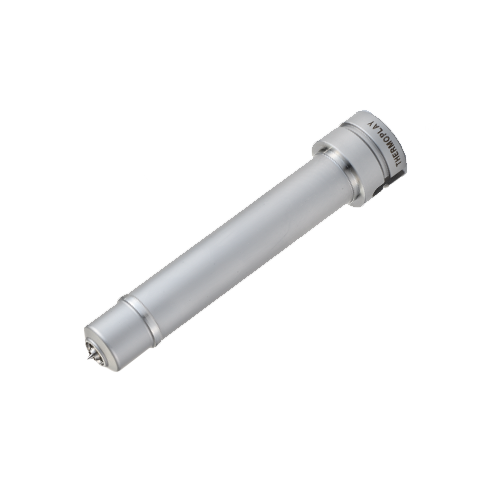

TD / TD6 18

Thermal Gate Nozzles & Single Nozzles

  • Direct Injection
  • On Sprue Injection
  • Valve Gate Injection
Image Name Description Product
Catalog		 3D data Flow Bore
Ø mm		 Cut out
Ø mm		 Support Ring
Ø mm		 Sealing
Ø mm

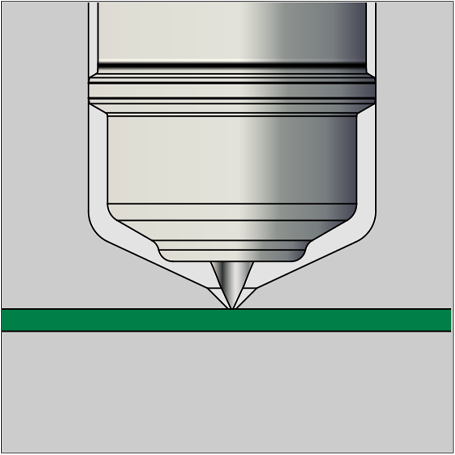

TD 18-1 TD 18-1
Nozzle for critical vestige, works with filled/abrasive materials; seals on body, less precise seat needed.
 TD 18-1 TD 18-1 4 18 23.5 18
TD6 18-1 TD6 18-1 Nozzle for critical vestige, works with filled/abrasive materials; seals on body, less precise seat needed. TD6 18-1 TD6 18-1 4 18 43 18
TD 18-1MD TD 18-1MD

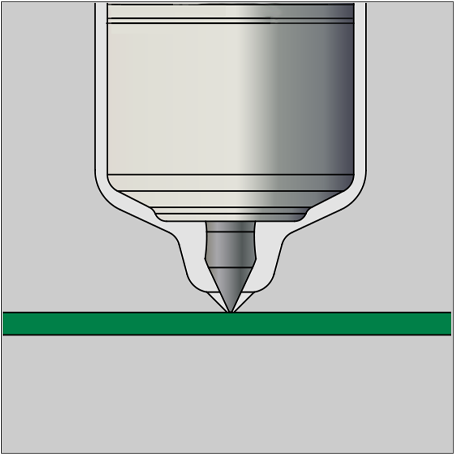

TD 18-1B TD 18-1B
Nozzle for good gate appearance, thin fast-cycle parts, limited space. Handles abrasive fillers, high-fluidity materials; not for quick color changes. Seals on body, less precise seat needed.
 TD 18-1B TD 18-1B 4 18 23.5 18
TD6 18-1B TD6 18-1B Nozzle for good gate appearance, thin fast-cycle parts, limited space. Handles abrasive fillers, high-fluidity materials; not for quick color changes. Seals on body, less precise seat needed. TD6 18-1B TD6 18-1B 4 18 43 18
TD 18-2 TD 18-2
Nozzle for injection on sprues or when the injection point mark is not critical; not suitable for polymers that drool easily. Requires less precision in seat machining.
 TD 18-2 TD 18-2 4 18 23.5 18
TD6 18-2 TD6 18-2
Nozzle for injection on sprues or when the injection point mark is not critical; not suitable for polymers that drool easily. Requires less precision in seat machining.
 TD6 18-2 TD6 18-2 4 18 43 18
TD 18-3 TD 18-3
Valve gate nozzle, recommended when the injection mark is important; also suitable for filled and abrasive materials. Like TD2, it requires less precision in seat machining.



 TD 18-3 TD 18-3 5 18 23.5 18

Download

TF / TF6 23

Thermal Gate Nozzles & Single Nozzles

  • Direct Injection
Image Name Description Product
Catalog		 3D data Flow Bore
Ø mm		 Cut out
Ø mm		 Support Ring
Ø mm		 Sealing
Ø mm
TF 23-1 TF 23-1
Nozzle for good vestige, suitable for all polymers, also abrasive fillers.
 TF 23-1 TF 23-1 7 29 12
TF6 23-1 TF6 23-1
Nozzle for good vestige, suitable for all polymers, also abrasive fillers.
 TF6 23-1 TF6 23-1 7 23 62 12
TF 23-1MD TF 23-1MD
Nozzle for good vestige, suitable for all polymers, also abrasive fillers.
 TF 23-1MD TF 23-1MD 7 29 12
TF6 23-1MD TF6 23-1MD
Nozzle for good vestige, suitable for all polymers, also abrasive fillers.
 TF6 23-1MD 7 23 62 12
TF 23-1B15 TF 23-1B15
Nozzle for good gate appearance, extended tip for limited space, suited for thin fast-cycle parts. Handles abrasive fillers up to 20%, not for quick color changes.
 TF 23-1B15 TF 23-1B15 7 29 12
TF6 23-1B15 TF6 23-1B15
Nozzle for good gate appearance, extended tip for limited space, suited for thin fast-cycle parts. Handles abrasive fillers up to 20%, not for quick color changes.
 TF6 23-1B15 TF6 23-1B15 7 23 62 12
TF 23-1B50 TF 23-1B50
Nozzle for good gate appearance, extended tip for tight spaces, ideal for thin fast-cycle parts. Suitable with up to 20% abrasive fillers, not for quick color changes.
 TF 23-1B50 TF 23-1B50 7 29 12
TF6 23-1B50 TF6 23-1B50
Nozzle for good gate appearance, extended tip for tight spaces, ideal for thin fast-cycle parts. Suitable with up to 20% abrasive fillers, not for quick color changes.
 TF6 23-1B50 TF6 23-1B50 7 23 62 12
TF 23-1GLT TF 23-1GLT
Nozzle for metal-filled materials and high-appearance parts. Special tip ensures uniform flow, ideal for cosmetics and packaging.
 TF 23-1GLT TF 23-1GLT 7 29 12
TF6 23-1GLT TF6 23-1GLT
Nozzle for metal-filled materials and high-appearance parts. Special tip ensures uniform flow, ideal for cosmetics and packaging.
 TF6 23-1GLT TF6 23-1GLT 7 23 62 12
TF 23-1D TF 23-1D
Nozzle for good gate appearance, suitable for abrasive fillers. Die can be machined for sealing; leaves circular witness mark.
 TF 23-1D TF 23-1D 7 29 7
TF6 23-1D TF6 23-1D
Nozzle for good gate appearance, suitable for abrasive fillers. Die can be machined for sealing; leaves circular witness mark.
 TF6 23-1D TF6 23-1D 7 23 62 7

Download

TF / TF6 23

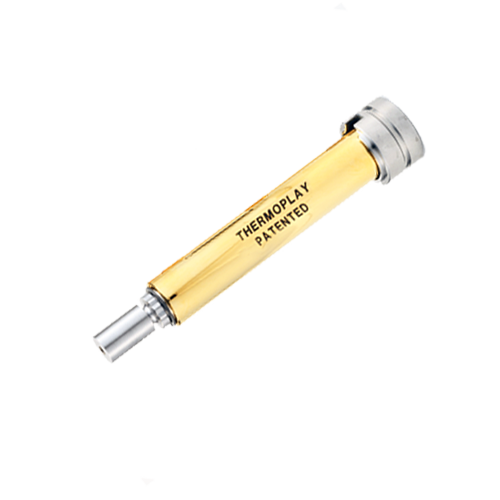

Thermal Gate Nozzles & Single Nozzles

  • On Sprue Injection
Image Name Description Product
Catalog		 3D data Flow Bore
Ø mm		 Cut out
Ø mm		 Support Ring
Ø mm		 Sealing
Ø mm
TF 23-1DSLA TF 23-1DSLA
Nozzle for sprues or direct gating, suitable for abrasive fillers. Stronger tip for larger sprues; die seal machined from cavity side. Leaves circular witness mark.
 TF 23-1DSLA TF 23-1DSLA 7 29 12
TF6 23-1DSLA TF6 23-1DSLA
Nozzle for sprues or direct gating, suitable for abrasive fillers. Stronger tip for larger sprues; die seal machined from cavity side. Leaves circular witness mark.
 TF6 23-1DSLA TF6 23-1DSLA 7 23 62 12
TF 23-1DSLU TF 23-1DSLU
Nozzle for sprues or direct gating, suitable for abrasive fillers. Strengthened, longer tip for larger sprues and mould profile shaping; die seal machined from cavity side. Leaves circular witness mark.
 TF 23-1DSLU TF 23-1DSLU 7 29 12
TF6 23-1DSLU TF6 23-1DSLU
Nozzle for sprues or direct gating, suitable for abrasive fillers. Strengthened, longer tip for larger sprues and mould profile shaping; die seal machined from cavity side. Leaves circular witness mark.
 TF6 23-1DSLU TF6 23-1DSLU 7 23 62 12
TF 23-2 TF 23-2
The nozzle is suitable for sprue or cavity molding, leaving a visible injection mark. It works with all polymers, including abrasive fillers, but not with drool-prone materials.
 TF 23-2 TF 23-2 7 29 12
TF6 23-2 TF6 23-2
The nozzle is suitable for sprue or cavity molding, leaving a visible injection mark. It works with all polymers, including abrasive fillers, but not with drool-prone materials.
 TF6 23-2 TF6 23-2 7 23 62 12
TF 23-2P TF 23-2P
The nozzle can inject onto the sprue or directly into the cavity, leaving a visible injection mark. It is well suited for drool-prone materials and also compatible with abrasive fillers.
 TF 23-2P TF 23-2P 7 29 12
TF6 23-2P TF6 23-2P
The nozzle can inject onto the sprue or directly into the cavity, leaving a visible injection mark. It is well suited for drool-prone materials and also compatible with abrasive fillers.
 TF6 23-2P TF6 23-2P 7 23 62 12
TF 23-2DSPR TF 23-2DSPR
The nozzle is suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. It can be sealed from the cavity side but is not suitable for drool-prone materials.
 TF 23-2DSPR TF 23-2DSPR 7 29 3.5
TF6 23-2DSPR TF6 23-2DSPR
The nozzle is suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. It can be sealed from the cavity side but is not suitable for drool-prone materials.
 TF6 23-2DSPR TF6 23-2DSPR 7 23 62 3.5

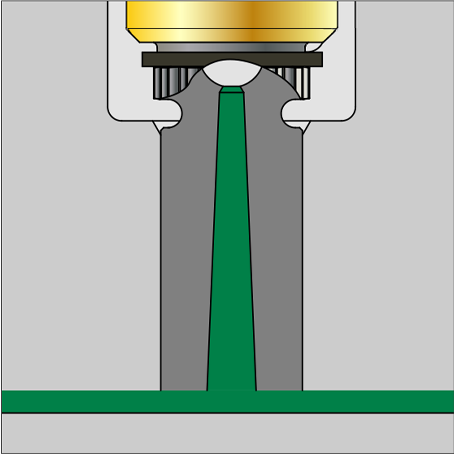

TF 23-2DSTD TF 23-2DSTD
The nozzle is suitable for parts where gate vestige is not critical. It can be sealed from the cavity side, leaving a circular tip mark on the part, and is recommended only for high-fluidity materials.
 TF 23-2DSTD TF 23-2DSTD 7 29 3.5
TF6 23-2DSTD TF6 23-2DSTD
The nozzle is suitable for parts where gate vestige is not critical. It can be sealed from the cavity side, leaving a circular tip mark on the part, and is recommended only for high-fluidity materials.
 TF6 23-2DSTD TF6 23-2DSTD 7 23 62 3.5
TF 23-2DSLA TF 23-2DSLA
The nozzle is suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. It can be sealed from the cavity side, and compared to the TF-2DSPR, has a reinforced tip for larger sprues. Not suitable for drool-prone materials.
 TF 23-2DSLA TF 23-2DSLA 7 29 12
TF6 23-2DSLA TF6 23-2DSLA
The nozzle is suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. It can be sealed from the cavity side, and compared to the TF-2DSPR, has a reinforced tip for larger sprues. Not suitable for drool-prone materials.
 TF6 23-2DSLA TF6 23-2DSLA 7 23 62 12
TF 23-2DSLU TF 23-2DSLU
Nozzle suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. Compared to the TF-2DSPR, the tip is reinforced for larger sprues, and compared to the TF-2DSLA, it is longer and can be shaped to match the part’s profile. Not suitable for drool-prone materials.
 TF 23-2DSLU TF 23-2DSLU 7 29 12
TF6 23-2DSLU TF6 23-2DSLU
Nozzle suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. Compared to the TF-2DSPR, the tip is reinforced for larger sprues, and compared to the TF-2DSLA, it is longer and can be shaped to match the part’s profile. Not suitable for drool-prone materials.
 TF6 23-2DSLU TF6 23-2DSLU 7 23 62 12

Download

TF / MO 23

Valve Gate Nozzles & Single Nozzles

  • Valve Gate Injection



Image Name Description Product
Catalog		 3D data Flow Bore
Ø mm		 Cut out
Ø mm		 Support Ring
Ø mm		 Sealing
Ø mm
TF 23-3 TF 23-3
The valve-gate nozzle is suitable for molding parts requiring optimal gate aesthetics and can also handle reinforced plastics with abrasive fillers.
 TF 23-3 TF 23-3 5 17.5 26 10
MO 23-3 MO 23-3
The valve-gate nozzle is suitable for molding parts requiring optimal gate aesthetics and can also handle reinforced plastics with abrasive fillers.
 MO 23-3 MO 23-3 5 17.5 94 10
TF 23-3B TF 23-3B
Nozzle with prolonged tip for restricted areas, ideal for thin-walled, fast-cycle parts with good gate aesthetics. Suitable for abrasive-filled materials, but not for polycarbonate or similar.
 TF 23-3B TF 23-3B 5 17.5 26 10
MO 23-3B MO 23-3B
Nozzle with prolonged tip for restricted areas, ideal for thin-walled, fast-cycle parts with good gate aesthetics. Suitable for abrasive-filled materials, but not for polycarbonate or similar.
 MO 23-3B MO 23-3B 5 17.5 94 10
TF 23-3D TF 23-3D
Valve-gate nozzle for optimal gate aesthetics and abrasive-filled materials; seat machinable from cavity side, leaving a circular tip mark.
 TF 23-3D TF 23-3D 5 17.5 26 6
MO 23-3D MO 23-3D
Valve-gate nozzle for optimal gate aesthetics and abrasive-filled materials; seat machinable from cavity side, leaving a circular tip mark.
 MO 23-3D MO 23-3D 5 17.5 94 6
TF 23-3DSLA TF 23-3DSLA
Valve-gate nozzle for parts requiring optimal gate aesthetics and abrasive-filled materials; seat machinable from cavity side, reinforced tip for larger injection points, leaving a visible circular mark.
 TF 23-3DSLA TF 23-3DSLA 5 17.5 26 10
MO 23-3DSLA MO 23-3DSLA
Valve-gate nozzle for parts requiring optimal gate aesthetics and abrasive-filled materials; seat machinable from cavity side, reinforced tip for larger injection points, leaving a visible circular mark.
 MO 23-3DSLA MO 23-3DSLA 5 17.5 94 10
TF 23-3DSLU TF 23-3DSLU
Valve-gate nozzle for optimal gate aesthetics and abrasive materials; cavity-side machinable seat, reinforced tip for larger or shaped sprues, leaving a circular mark.
 TF 23-3DSLU TF 23-3DSLU 5 17.5 26 10
MO 23-3DSLU MO 23-3DSLU
Valve-gate nozzle for optimal gate aesthetics and abrasive materials; cavity-side machinable seat, reinforced tip for larger or shaped sprues, leaving a circular mark.
 MO 23-3DSLU MO 23-3DSLU 5 17.5 94 10

Download

TD / TD6 22

Thermal Gate Nozzles & Single Nozzles

  • Direct Injection
  • On Sprue Injection
  • Valve Gate Injection
Image Name Description Product
Catalog		 3D data Flow Bore
Ø mm		 Cut out
Ø mm		 Support Ring
Ø mm		 Sealing
Ø mm
TD 22-1 TD 22-1
Nozzle for parts where injection vestige matters, suitable for filled and abrasive materials; TD nozzles have an external-body seal, requiring less precise seat machining than TF series.
 TD 22-1 TD 22-1 5 22 29 22
TD6 22-1 TD6 22-1 Nozzle for parts where injection vestige matters, suitable for filled and abrasive materials; TD nozzles have an external-body seal, requiring less precise seat machining than TF series.  TD6 22-1 TD6 22-1 5 22 43 22
TD 22-1MD TD 22-1MD
Nozzle for parts where injection vestige matters, suitable for filled and abrasive materials; TD nozzles have an external-body seal, requiring less precise seat machining than TF series.
 TD 22-1MD TD 22-1MD 5 22 29 22
TD 22-1B TD 22-1B
Nozzle for good gate appearance, thin fast-cycle parts, limited space. Handles abrasive fillers, high-fluidity materials; not for quick color changes. Seals on body, less precise seat needed.
 TD 22-1B TD 22-1B 5 22 29 22
TD6 22-1B TD6 22-1B Nozzle for good gate appearance, thin fast-cycle parts, limited space. Handles abrasive fillers, high-fluidity materials; not for quick color changes. Seals on body, less precise seat needed. TD6 22-1B TD6 22-1B 5 22 43 22

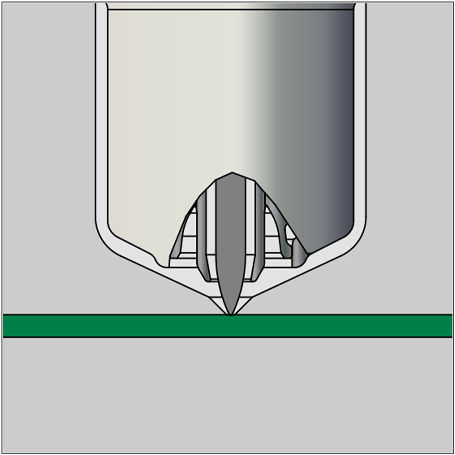

TD 22-1GLT TD 22-1GLT
Nozzle suitable for materials with metal particles, ideal for parts where aesthetics are crucial (cosmetics, packaging). The tip shape ensures uniform material distribution and reduced flow paths.
 TD 22-1GLT TD 22-1GLT 5 22 29 22
TD6 22-1GLT TD6 22-1GLT
Nozzle suitable for materials with metal particles, ideal for parts where aesthetics are crucial (cosmetics, packaging). The tip shape ensures uniform material distribution and reduced flow paths.
 TD6 22-1GLT TD6 22-1GLT 5 22 43 22
TD 22-2 TD 22-2
Nozzle for injection on sprues or when the injection point mark is not critical; not suitable for polymers that drool easily. Requires less precision in seat machining.
 TD 22-2 TD 22-2 5 22 29 22
TD6 22-2 TD6 22-2
Nozzle for injection on sprues or when the injection point mark is not critical; not suitable for polymers that drool easily. Requires less precision in seat machining.
 TD6 22-2 TD6 22-2 5 22 43 22
TD 22-3 TD 22-3
Valve gate nozzle, recommended when the injection mark is important; also suitable for filled and abrasive materials. Like TD2, it requires less precision in seat machining.



 TD 22-3 TD 22-3 5 22 29 22

Download

TF / TF6 32

Thermal Gate Nozzles & Single Nozzles

  • Direct Injection
Image Name Description Product
Catalog		 3D data Flow Bore
Ø mm		 Cut out
Ø mm		 Support Ring
Ø mm		 Sealing
Ø mm
TF 32-1 TF 32-1
Nozzle for good vestige, suitable for all polymers, also abrasive fillers.
 TF 32-1 TF 32-1 10 32 42 16
TF6 32-1 TF6 32-1
Nozzle for good vestige, suitable for all polymers, also abrasive fillers.
 TF6 32-1 TF6 32-1 10 32 62 16
TF 32-1B30 TF 32-1B30
Nozzle for good gate appearance, extended tip for limited space, suited for thin fast-cycle parts. Handles abrasive fillers up to 20%, not for quick color changes.
 TF 32-1B30 TF 32-1B30 10 32 42 16
TF6 32-1B30 TF6 32-1B30
Nozzle for good gate appearance, extended tip for limited space, suited for thin fast-cycle parts. Handles abrasive fillers up to 20%, not for quick color changes.
 TF6 32-1B30 TF6 32-1B30 10 32 62 16
TF 32-1B50 TF 32-1B50
Nozzle for good gate appearance, extended tip for limited space, suited for thin fast-cycle parts. Handles abrasive fillers up to 20%, not for quick color changes.
 TF 32-1B50 TF 32-1B50 10 32 42 16
TF6 32-1B50 TF6 32-1B50
Nozzle for good gate appearance, extended tip for limited space, suited for thin fast-cycle parts. Handles abrasive fillers up to 20%, not for quick color changes.
 TF6 32-1B50 TF6 32-1B50 10 32 62 16
TF 32-1D TF 32-1D
Nozzle for good gate appearance, suitable for abrasive fillers. Die can be machined for sealing; leaves circular witness mark.
 TF 32-1D TF 32-1D 10 32 42 8.5
TF6 32-1D TF6 32-1D
Nozzle for good gate appearance, suitable for abrasive fillers. Die can be machined for sealing; leaves circular witness mark.
 TF6 32-1D TF6 32-1D 10 32 62 8.5

Download

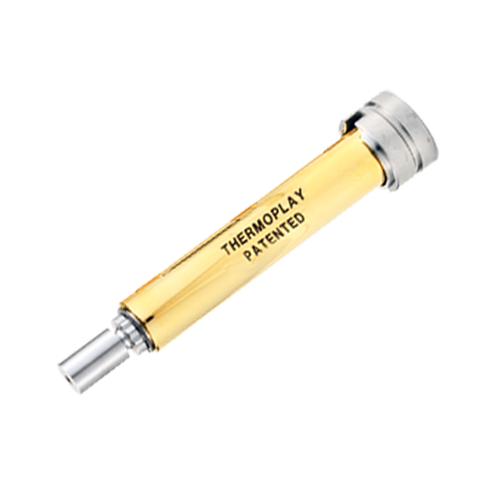

TF / TF6 32

Thermal Gate Nozzles & Single Nozzles

  • On Sprue Injection
Image Name Description Product
Catalog		 3D data Flow Bore
Ø mm		 Cut out
Ø mm		 Support Ring
Ø mm		 Sealing
Ø mm
TF 32-1DSLA TF 32-1DSLA
The nozzle suits sprue or cavity molding, even with abrasive materials, and features a reinforced tip for larger sprues, leaving a circular mark on the part.
 TF 32-1DSLA TF 32-1DSLA 10 32 42 16
TF6 32-1DSLA TF6 32-1DSLA
The nozzle suits sprue or cavity molding, even with abrasive materials, and features a reinforced tip for larger sprues, leaving a circular mark on the part.
 TF6 32-1DSLA TF6 32-1DSLA 10 32 62 16
TF 32-1DSLU TF 32-1DSLU
Nozzle for sprues or direct gating, suitable for abrasive fillers. Strengthened, longer tip for larger sprues and mould profile shaping; die seal machined from cavity side. Leaves circular witness mark.
 TF 32-1DSLU TF 32-1DSLU 10 32 42 16
TF6 32-1DSLU TF6 32-1DSLU
Nozzle for sprues or direct gating, suitable for abrasive fillers. Strengthened, longer tip for larger sprues and mould profile shaping; die seal machined from cavity side. Leaves circular witness mark.
 TF6 32-1DSLU TF6 32-1DSLU 10 32 62 16
TF 32-2 TF 32-2
The nozzle is suitable for sprue or cavity molding, leaving a visible injection mark. It works with all polymers, including abrasive fillers, but not with drool-prone materials.
 TF 32-2 TF 32-2 10 32 42 16
TF6 32-2 TF6 32-2
The nozzle is suitable for sprue or cavity molding, leaving a visible injection mark. It works with all polymers, including abrasive fillers, but not with drool-prone materials.
 TF6 32-2 TF6 32-2 10 32 62 16
TF 32-2P TF 32-2P
The nozzle can inject onto the sprue or directly into the cavity, leaving a visible injection mark. It is well suited for drool-prone materials and also compatible with abrasive fillers.
 TF 32-2P TF 32-2P 10 32 42 16
TF6 32-2P TF6 32-2P
The nozzle can inject onto the sprue or directly into the cavity, leaving a visible injection mark. It is well suited for drool-prone materials and also compatible with abrasive fillers.
 TF6 32-2P TF6 32-2P 10 32 62 16
TF 32-2DSTD TF 32-2DSTD
The nozzle is suitable for parts where gate vestige is not critical. It can be sealed from the cavity side, leaving a circular tip mark on the part, and is recommended only for high-fluidity materials.
 TF 32-2DSTD TF 32-2DSTD 10 32 42 6
TF6 32-2DSTD TF6 32-2DSTD
The nozzle is suitable for parts where gate vestige is not critical. It can be sealed from the cavity side, leaving a circular tip mark on the part, and is recommended only for high-fluidity materials.
 TF6 32-2DSTD TF6 32-2DSTD 10 32 62 6
TF 32-2DSPR TF 32-2DSPR
The nozzle is suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. It can be sealed from the cavity side but is not suitable for drool-prone materials.
 TF 32-2DSPR TF 32-2DSPR 10 32 42 6
TF6 32-2DSPR TF6 32-2DSPR
The nozzle is suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. It can be sealed from the cavity side but is not suitable for drool-prone materials.
 TF6 32-2DSPR TF6 32-2DSPR 10 32 62 6
TF 32-2DSLA TF 32-2DSLA
The nozzle is suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. It can be sealed from the cavity side, and compared to the TF-2DSPR, has a reinforced tip for larger sprues. Not suitable for drool-prone materials.
 TF 32-2DSLA TF 32-2DSLA 10 32 42 16
TF6 32-2DSLA TF6 32-2DSLA
The nozzle is suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. It can be sealed from the cavity side, and compared to the TF-2DSPR, has a reinforced tip for larger sprues. Not suitable for drool-prone materials.
 TF6 32-2DSLA TF6 32-2DSLA 10 32 62 16
TF 32-2DSLU TF 32-2DSLU
Nozzle suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. Compared to the TF-2DSPR, the tip is reinforced for larger sprues, and compared to the TF-2DSLA, it is longer and can be shaped to match the part’s profile. Not suitable for drool-prone materials.
 TF 32-2DSLU TF 32-2DSLU 10 32 42 16
TF6 32-2DSLU TF6 32-2DSLU
Nozzle suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. Compared to the TF-2DSPR, the tip is reinforced for larger sprues, and compared to the TF-2DSLA, it is longer and can be shaped to match the part’s profile. Not suitable for drool-prone materials.
 TF6 32-2DSLU TF6 32-2DSLU 10 32 62 16

Download

TF / TF6 32

Valve Gate Nozzles & Single Nozzles

  • Valve Gate Injection



Image Name Description Product
Catalog		 3D data Flow Bore
Ø mm		 Cut out
Ø mm		 Support Ring
Ø mm		 Sealing
Ø mm
TF 32-3 TF 32-3
The valve-gate nozzle is suitable for molding parts requiring optimal gate aesthetics and can also handle reinforced plastics with abrasive fillers.
 TF 32-3 TF 32-3 10 32 42 16
MO 32-3 MO 32-3
The valve-gate nozzle is suitable for molding parts requiring optimal gate aesthetics and can also handle reinforced plastics with abrasive fillers.
 MO 32-3 MO 32-3 10 32 94 16
TF 32-3B TF 32-3B
Nozzle with prolonged tip for restricted areas, ideal for thin-walled, fast-cycle parts with good gate aesthetics. Suitable for abrasive-filled materials, but not for polycarbonate or similar.
 TF 32-3B TF 32-3B 10 32 42 16
MO 32-3B MO 32-3B
Nozzle with prolonged tip for restricted areas, ideal for thin-walled, fast-cycle parts with good gate aesthetics. Suitable for abrasive-filled materials, but not for polycarbonate or similar.
 MO 32-3B MO 32-3B 10 32 94 16
TF 32-3D TF 32-3D
Valve-gate nozzle for optimal gate aesthetics and abrasive-filled materials; seat machinable from cavity side, leaving a circular tip mark.
 TF 32-3D TF 32-3D 10 32 42 8.5
MO 32-3D MO 32-3D
Valve-gate nozzle for optimal gate aesthetics and abrasive-filled materials; seat machinable from cavity side, leaving a circular tip mark.
 MO 32-3D MO 32-3D 10 32 94 8.5
TF 32-3DSLA TF 32-3DSLA
Valve-gate nozzle for parts requiring optimal gate aesthetics and abrasive-filled materials; seat machinable from cavity side, reinforced tip for larger injection points, leaving a visible circular mark.
 TF 32-3DSLA TF 32-3DSLA 10 32 42 16
MO 32-3DSLA MO 32-3DSLA
Valve-gate nozzle for parts requiring optimal gate aesthetics and abrasive-filled materials; seat machinable from cavity side, reinforced tip for larger injection points, leaving a visible circular mark.
 MO 32-3DSLA MO 32-3DSLA 10 32 94 16
TF 32-3DSLU TF 32-3DSLU
Valve-gate nozzle for optimal gate aesthetics and abrasive materials; cavity-side machinable seat, reinforced tip for larger or shaped sprues, leaving a circular mark.
 TF 32-3DSLU TF 32-3DSLU 10 32 42 16
MO 32-3DSLU MO 32-3DSLU
Valve-gate nozzle for optimal gate aesthetics and abrasive materials; cavity-side machinable seat, reinforced tip for larger or shaped sprues, leaving a circular mark.
 MO 32-3DSLU MO 32-3DSLU 10 32 94 16

Download

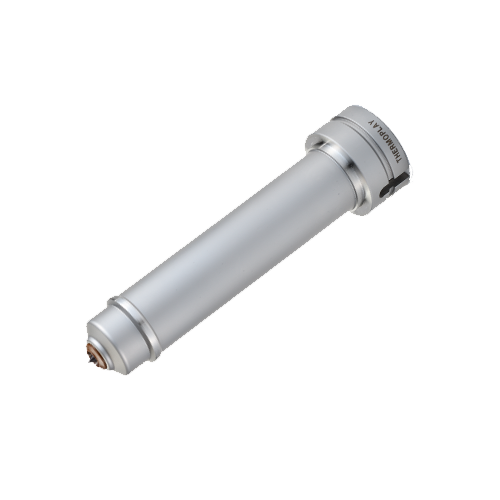

TD / TD630

Thermal Gate Nozzles & Single Nozzles

  • Direct Injection
  • On Sprue Injection
  • Valve Gate Injection
Image Name Description Product
Catalog		 3D data Flow Bore
Ø mm		 Cut out
Ø mm		 Support Ring
Ø mm		 Sealing
Ø mm
TD 30-1 TD 30-1
Nozzle for parts where injection vestige matters, suitable for filled and abrasive materials; TD nozzles have an external-body seal, requiring less precise seat machining than TF series.
 TD 30-1 TD 30-1 7 30 39 30
TD6 30-1 TD6 30-1 Nozzle for parts where injection vestige matters, suitable for filled and abrasive materials; TD nozzles have an external-body seal, requiring less precise seat machining than TF series.  TD6 30-1 TD6 30-1 7 30 58 30
TD 30-1MD TD 30-1MD
Nozzle for parts where injection vestige matters, suitable for filled and abrasive materials; TD nozzles have an external-body seal, requiring less precise seat machining than TF series.
 TD 30-1MD TD 30-1MD 7 30 39 30
TD 30-1B TD 30-1B
Nozzle for good gate appearance, thin fast-cycle parts, limited space. Handles abrasive fillers, high-fluidity materials; not for quick color changes. Seals on body, less precise seat needed.
 TD 30-1B TD 30-1B 7 30 39 30
TD6 30-1B TD6 30-1B Nozzle for good gate appearance, thin fast-cycle parts, limited space. Handles abrasive fillers, high-fluidity materials; not for quick color changes. Seals on body, less precise seat needed. TD6 30-1B TD6 30-1B 7 30 58 30
TD 30-1GLT TD 30-1GLT
Nozzle suitable for materials with metal particles, ideal for parts where aesthetics are crucial (cosmetics, packaging). The tip shape ensures uniform material distribution and reduced flow paths.
 TD 30-1GLT TD 30-1GLT 7 30 39 30
TD6 30-1GLT TD6 30-1GLT
Nozzle suitable for materials with metal particles, ideal for parts where aesthetics are crucial (cosmetics, packaging). The tip shape ensures uniform material distribution and reduced flow paths.
 TD6 30-1GLT TD6 30-1GLT 7 30 58 30
TD 30-2 TD 30-2
Valve gate nozzle, recommended when the injection mark is important; also suitable for filled and abrasive materials. Like TD2, it requires less precision in seat machining.
 TD 30-2 TD 30-2 7 30 39 30
TD6 30-2 TD6 30-2
Valve gate nozzle, recommended when the injection mark is important; also suitable for filled and abrasive materials. Like TD2, it requires less precision in seat machining.
 TD6 30-2 TD6 30-2 7 30 58 30
TD 30-3 TD 30-3
Valve gate nozzle, recommended when the injection mark is important; also suitable for filled and abrasive materials. Like TD2, it requires less precision in seat machining.



 TD 30-3 TD 30-3 7 30 39 30

Download

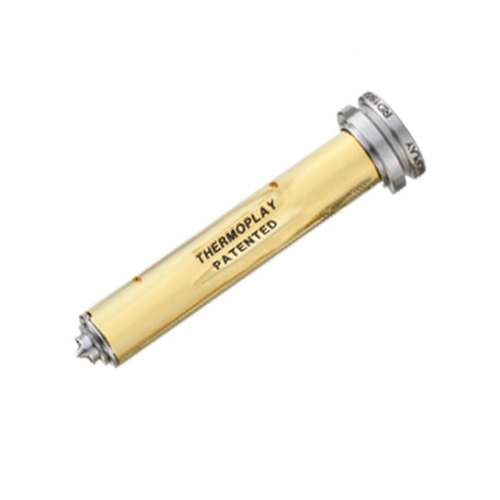

TF / TF6 46

Thermal Gate Nozzles & Single Nozzles

  • Direct Injection
Image Name Description Product
Catalog		 3D data Flow Bore
Ø mm		 Cut out
Ø mm		 Support Ring
Ø mm		 Sealing
Ø mm
TF 46-1 TF 46-1
Nozzle for good vestige, suitable for all polymers, also abrasive fillers.
 TF 46-1 TF 46-1 15 46 62 25
TF6 46-1 TF6 46-1
Nozzle for good vestige, suitable for all polymers, also abrasive fillers.
 TF6 46-1 TF6 46-1 15 46 84 25
TF 46-1D TF 46-1D
Nozzle for good gate appearance, suitable for abrasive fillers. Die can be machined for sealing; leaves circular witness mark.
 TF 46-1D TF 46-1D 15 46 62 16
TF6 46-1D TF6 46-1D
Nozzle for good gate appearance, suitable for abrasive fillers. Die can be machined for sealing; leaves circular witness mark.
 TF6 46-1D TF6 46-1D 15 46 84 16

Download

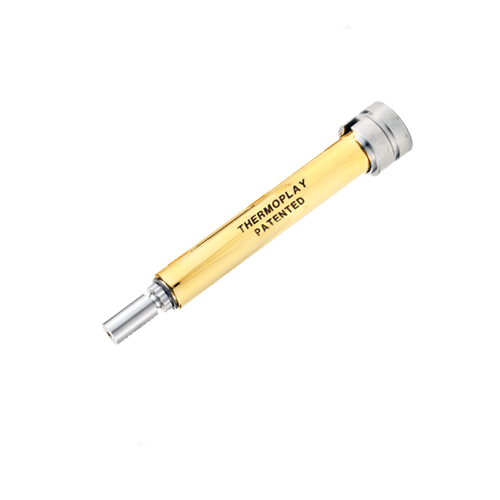

TF / TF6 46

Thermal Gate Nozzles & Single Nozzles

  • On Sprue Injection
Image Name Description Product
Catalog		 3D data Flow Bore
Ø mm		 Cut out
Ø mm		 Support Ring
Ø mm		 Sealing
Ø mm
TF 46-1DSLA TF 46-1DSLA
The nozzle suits sprue or cavity molding, even with abrasive materials, and features a reinforced tip for larger sprues, leaving a circular mark on the part.
 TF 46-1DSLA TF 46-1DSLA 15 46 62 20
TF6 46-1DSLA TF6 46-1DSLA
The nozzle suits sprue or cavity molding, even with abrasive materials, and features a reinforced tip for larger sprues, leaving a circular mark on the part.
 TF6 46-1DSLA TF6 46-1DSLA 15 46 84 20
TF 46-1DSLU TF 46-1DSLU
Nozzle for sprues or direct gating, suitable for abrasive fillers. Strengthened, longer tip for larger sprues and mould profile shaping; die seal machined from cavity side. Leaves circular witness mark.
 TF 46-1DSLU TF 46-1DSLU 15 46 62 20
TF6 46-1DSLU TF6 46-1DSLU
Nozzle for sprues or direct gating, suitable for abrasive fillers. Strengthened, longer tip for larger sprues and mould profile shaping; die seal machined from cavity side. Leaves circular witness mark.
 TF6 46-1DSLU TF6 46-1DSLU 15 46 84 20
TF 46-2 TF 46-2
The nozzle is suitable for sprue or cavity molding, leaving a visible injection mark. It works with all polymers, including abrasive fillers, but not with drool-prone materials.
 TF 46-2 TF 46-2 15 46 62 25
TF6 46-2 TF6 46-2
The nozzle is suitable for sprue or cavity molding, leaving a visible injection mark. It works with all polymers, including abrasive fillers, but not with drool-prone materials.
 TF6 46-2 TF6 46-2 15 46 84 25
TF 46-2MD TF 46-2MD
The nozzle is suitable for sprue or cavity molding, leaving a visible injection mark. It works with all polymers, including abrasive fillers, but not with drool-prone materials.
 TF 46-2MD TF 46-2MD 15 46 62 25
TF6 46-2MD TF6 46-2MD
The nozzle is suitable for sprue or cavity molding, leaving a visible injection mark. It works with all polymers, including abrasive fillers, but not with drool-prone materials.
 TF6 46-2MD 15 46 84 25
TF 46-2P TF 46-2P
The nozzle can inject onto the sprue or directly into the cavity, leaving a visible injection mark. It is well suited for drool-prone materials and also compatible with abrasive fillers.
 TF 46-2P TF 46-2P 15 46 62 25
TF6 46-2P TF6 46-2P
The nozzle can inject onto the sprue or directly into the cavity, leaving a visible injection mark. It is well suited for drool-prone materials and also compatible with abrasive fillers.
 TF6 46-2P TF6 46-2P 15 46 84 25
TF 46-2DSTD TF 46-2DSTD
The nozzle is suitable for parts where gate vestige is not critical. It can be sealed from the cavity side, leaving a circular tip mark on the part, and is recommended only for high-fluidity materials.
 TF 46-2DSTD TF 46-2DSTD 15 46 62 10
TF6 46-2DSTD TF6 46-2DSTD
The nozzle is suitable for parts where gate vestige is not critical. It can be sealed from the cavity side, leaving a circular tip mark on the part, and is recommended only for high-fluidity materials.
 TF6 46-2DSTD TF6 46-2DSTD 15 46 84 10
TF 46-2DSPR TF 46-2DSPR
The nozzle is suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. It can be sealed from the cavity side but is not suitable for drool-prone materials.
 TF 46-2DSPR TF 46-2DSPR 15 46 62 10
TF6 46-2DSPR TF6 46-2DSPR
The nozzle is suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. It can be sealed from the cavity side but is not suitable for drool-prone materials.
 TF6 46-2DSPR TF6 46-2DSPR 15 46 84 10
TF 46-2DSLA TF 46-2DSLA
The nozzle is suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. It can be sealed from the cavity side, and compared to the TF-2DSPR, has a reinforced tip for larger sprues. Not suitable for drool-prone materials.
 TF 46-2DSLA TF 46-2DSLA 15 46 62 20
TF6 46-2DSLA TF6 46-2DSLA
The nozzle is suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. It can be sealed from the cavity side, and compared to the TF-2DSPR, has a reinforced tip for larger sprues. Not suitable for drool-prone materials.
 TF6 46-2DSLA TF6 46-2DSLA 15 46 84 20
TF 46-2DSLU TF 46-2DSLU
Nozzle suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. Compared to the TF-2DSPR, the tip is reinforced for larger sprues, and compared to the TF-2DSLA, it is longer and can be shaped to match the part’s profile. Not suitable for drool-prone materials.



 TF 46-2DSLU TF 46-2DSLU 15 46 62 20
TF6 46-2DSLU TF6 46-2DSLU
Nozzle suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. Compared to the TF-2DSPR, the tip is reinforced for larger sprues, and compared to the TF-2DSLA, it is longer and can be shaped to match the part’s profile. Not suitable for drool-prone materials.



 TF6 46-2DSLU TF6 46-2DSLU 15 46 84 20

Download

TF / MG 46

Valve Gate Nozzles & Single Nozzles

  • Valve Gate Injection



Image Name Description Product
Catalog		 3D data Flow Bore
Ø mm		 Cut out
Ø mm		 Support Ring
Ø mm		 Sealing
Ø mm
TF 46-3 TF 46-3
The valve-gate nozzle is suitable for molding parts requiring optimal gate aesthetics and can also handle reinforced plastics with abrasive fillers.
 TF 46-3 TF 46-3 15 46 62 25
MG 46-3-G MG 46-3-G
The valve-gate nozzle is suitable for molding parts requiring optimal gate aesthetics and can also handle reinforced plastics with abrasive fillers.
 MG 46-3-G MG 46-3-G 15 46 114 25
MG 46-3-N MG 46-3-N
The valve-gate nozzle is suitable for molding parts requiring optimal gate aesthetics and can also handle reinforced plastics with abrasive fillers.
 MG 46-3-N MG 46-3-N 15 46 114 25
TF 46-3B TF 46-3B
Nozzle with prolonged tip for restricted areas, ideal for thin-walled, fast-cycle parts with good gate aesthetics. Suitable for abrasive-filled materials, but not for polycarbonate or similar.
 TF 46-3B TF 46-3B 15 46 62 25
MG 46-3B-G MG 46-3B-G
Nozzle with prolonged tip for restricted areas, ideal for thin-walled, fast-cycle parts with good gate aesthetics. Suitable for abrasive-filled materials, but not for polycarbonate or similar.
 MG 46-3B-G MG 46-3B-G 15 46 114 25
MG 46-3B-N MG 46-3B-N
Nozzle with prolonged tip for restricted areas, ideal for thin-walled, fast-cycle parts with good gate aesthetics. Suitable for abrasive-filled materials, but not for polycarbonate or similar.
 MG 46-3B-N MG 46-3B-N 15 46 114 25
TF 46-3D TF 46-3D
Valve-gate nozzle for optimal gate aesthetics and abrasive-filled materials; seat machinable from cavity side, leaving a circular tip mark.
 TF 46-3D TF 46-3D 15 46 62 16
MG 46-3D MG 46-3D
Valve-gate nozzle for optimal gate aesthetics and abrasive-filled materials; seat machinable from cavity side, leaving a circular tip mark.
 MG 46-3D MG 46-3D 15 46 114 16
TF 46-3DSLA TF 46-3DSLA
Valve-gate nozzle for parts requiring optimal gate aesthetics and abrasive-filled materials; seat machinable from cavity side, reinforced tip for larger injection points, leaving a visible circular mark.
 TF 46-3DSLA TF 46-3DSLA 15 46 62 20
MG 46-3DSLA MG 46-3DSLA
Valve-gate nozzle for parts requiring optimal gate aesthetics and abrasive-filled materials; seat machinable from cavity side, reinforced tip for larger injection points, leaving a visible circular mark.
 MG 46-3DSLA MG 46-3DSLA 15 46 114 20
TF 46-3DSLU TF 46-3DSLU
Valve-gate nozzle for optimal gate aesthetics and abrasive materials; cavity-side machinable seat, reinforced tip for larger or shaped sprues, leaving a circular mark.
 TF 46-3DSLU TF 46-3DSLU 15 46 62 20
MG 46-3DSLU MG 46-3DSLU
Valve-gate nozzle for optimal gate aesthetics and abrasive materials; cavity-side machinable seat, reinforced tip for larger or shaped sprues, leaving a circular mark.
 MG 46-3DSLU MG 46-3DSLU 15 46 114 20

Download

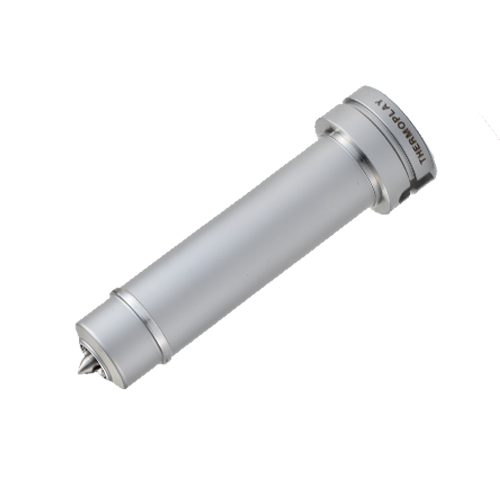

TD / TD6 44

Thermal Gate Nozzles & Single Nozzles

  • Direct Injection
Image Name Description Product
Catalog		 3D data Flow Bore
Ø mm		 Cut out
Ø mm		 Support Ring
Ø mm		 Sealing
Ø mm
TD 44-1 TD 44-1
Nozzle for parts where injection vestige matters, suitable for filled and abrasive materials; TD nozzles have an external-body seal, requiring less precise seat machining than TF series.
 TD 44-1 TD 44-1 11 44 54 44
TD6 44-1 TD6 44-1 Nozzle for parts where injection vestige matters, suitable for filled and abrasive materials; TD nozzles have an external-body seal, requiring less precise seat machining than TF series. TD6 44-1 TD6 44-1 11 44 58 44
TD 44-1MD TD 44-1MD
Nozzle for parts where injection vestige matters, suitable for filled and abrasive materials; TD nozzles have an external-body seal, requiring less precise seat machining than TF series.
 TD 44-1MD TD 44-1MD 11 44 54 44
TD 44-1B TD 44-1B
Nozzle for good gate appearance, thin fast-cycle parts, limited space. Handles abrasive fillers, high-fluidity materials; not for quick color changes. Seals on body, less precise seat needed.
 TD 44-1B TD 44-1B 11 44 54 44
TD6 44-1B TD6 44-1B
Nozzle for good gate appearance, thin fast-cycle parts, limited space. Handles abrasive fillers, high-fluidity materials; not for quick color changes. Seals on body, less precise seat needed.
 TD6 44-1B TD6 44-1B 11 44 58 44

Download

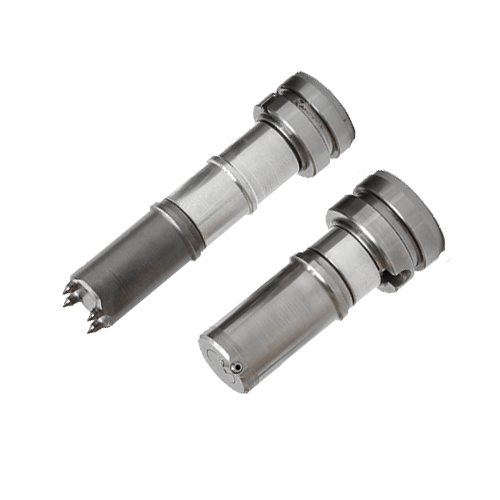

KS / KS6 22

Thermal Gate Nozzles & Single Nozzles

  • Multi-tip Injection
  • Edge Gate Injection
Image Name Description Product
Catalog		 3D data Flow Bore
Ø mm		 Cut out
Ø mm		 Support Ring
Ø mm		 Sealing
Ø mm

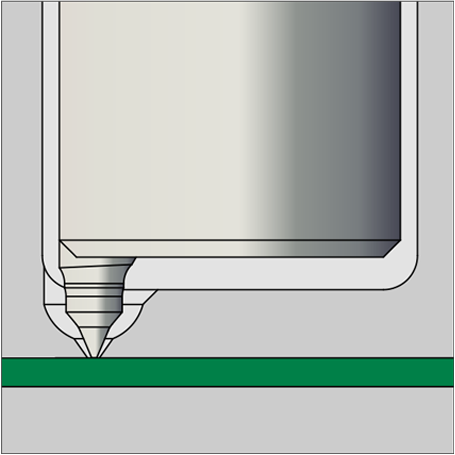

KS 5-22 KS 5-22
The multi-tip nozzle is ideal for small precision parts with close cavities and for ensuring concentricity through multiple gates.
 KS 5-22 KS 5-22 4 22 29 22
KS6 5-22 KS6 5-22
The multi-tip nozzle is ideal for small precision parts with close cavities and for ensuring concentricity through multiple gates.
 KS6 5-22 KS6 5-22 4 22 50 22
KS 8-22 KS 8-22
Edge gate nozzles enable injection into multiple cavities with smaller moulds. When the nozzle fits the inner diameter of round parts, it can inject internally to ensure concentricity.
 KS 8-22 KS 8-22 4 22 29 22
KS6 8-22 KS6 8-22 Edge gate nozzles enable injection into multiple cavities with smaller moulds. When the nozzle fits the inner diameter of round parts, it can inject internally to ensure concentricity. KS6 8-22 KS6 8-22 4 22 50 22

Download

KS / KS6 30

Thermal Gate Nozzles & Single Nozzles

  • Multi-tip Injection
  • Edge Gate Injection
Image Name Description Product
Catalog		 3D data Flow Bore
Ø mm		 Cut out
Ø mm		 Support Ring
Ø mm		 Sealing
Ø mm
KS 5-30 KS 5-30
The multi-tip nozzle is ideal for small precision parts with close cavities and for ensuring concentricity through multiple gates.
 KS 5-30 KS 5-30 6 30 39 30
KS6 5-30 KS6 5-30 The multi-tip nozzle is ideal for small precision parts with close cavities and for ensuring concentricity through multiple gates.  KS6 5-30 KS6 5-30 6 30 60 30
KS 8-30 KS 8-30
Edge gate nozzles enable injection into multiple cavities with smaller moulds. When the nozzle fits the inner diameter of round parts, it can inject internally to ensure concentricity.
 KS 8-30 KS 8-30 6 30 39 30
KS6 8-30 KS6 8-30 Edge gate nozzles enable injection into multiple cavities with smaller moulds. When the nozzle fits the inner diameter of round parts, it can inject internally to ensure concentricity. KS6 8-30 KS6 8-30 6 30 60 30

Download

KS / KS6 44

Thermal Gate Nozzles & Single Nozzles

  • Multi-tip Injection
  • Edge Gate Injection
Image Name Description Product
Catalog		 3D data Flow Bore
Ø mm		 Cut out
Ø mm		 Support Ring
Ø mm		 Sealing
Ø mm
KS 5-44 KS 5-44
The multi-tip nozzle is ideal for small precision parts with close cavities and for ensuring concentricity through multiple gates.
 KS 5-44 KS 5-44 10 44 54 44
KS6 5-44 KS6 5-44
The multi-tip nozzle is ideal for small precision parts with close cavities and for ensuring concentricity through multiple gates.
 KS6 5-44 KS6 5-44 10 44 75 44
KS 8-44 KS 8-44
Edge gate nozzles enable injection into multiple cavities with smaller moulds. When the nozzle fits the inner diameter of round parts, it can inject internally to ensure concentricity.
 KS 8-44 KS 8-44 10 44 54 44
KS6 8-44 KS6 8-44
Edge gate nozzles enable injection into multiple cavities with smaller moulds. When the nozzle fits the inner diameter of round parts, it can inject internally to ensure concentricity.
 KS6 8-44 KS6 8-44 10 44 75 44
  • MSN-22-50-ASE-System-h

    Signature Line

    featuring the Original Männer Valve Gate Technology.

    The Signature Line with the Original Männer Cylindrical Valve Gate Technology provides impeccable surface quality, part-to-part consistency, and process reliability. All hot runner systems are tailored and designed to meet the specific needs of our customers.

    Discover Products
  • MS hot runners 600x800

    Hot Runner Configurator

    Take full control of your hot runner design process – quickly, intuitively, and entirely online. With just a few clicks, you can configure your system to meet your exact requirements, reducing delivery times and helping you bring your projects to market faster.

    Our smart configurator guides you step by step, ensuring precision and efficiency while eliminating unnecessary delays. Whether you’re planning a new tool or optimizing an existing setup, you’ll save valuable time and effort.

    Register now and start designing your system today – faster, smarter, and easier than ever before.

    Go to Configurator

Let’s Build Something Together

Have a question or idea? We’d love to hear from you.

Contact us



Unlocking More Value for Your Production Line

  • Hot Runner Refurbishment
    Hot Runner Refurbishment

    Hot runner systems are the heart of efficient injection molding — but even the best equipment wears over time. Our refurbishment service restores worn or damaged components to optimal condition, ensuring precise temperature control, improved flow, and consistent product quality. Avoid unplanned downtime and costly replacements while keeping your production running smoothly.

    Go to Hot Runner Refurb
  • Hot Runner Training
    Hot Runner Training

    Our two-day training program combines in-depth theoretical instruction with hands-on practice directly in the workshop. It is designed for professionals who want to understand not only the principles of hot runner systems, but also how to install, maintain, and service them effectively.

    From Fundamentals to Practical Expertise!

    Get more Information
  • Gammaflux G25 Manufacturing Surrounding
    Hot Runner Control Systems

    Precise temperature management is the key to producing consistent, high-quality parts while keeping scrap rates low and profitability high.

    Our advanced Gammaflux control systems deliver unmatched accuracy, stability, and user-friendly operation. With intelligent temperature monitoring and adaptive control, you can ensure optimal melt flow, reduce downtime, and increase the overall efficiency of your production process.

    Whether you’re running small-scale projects or high-cavity, high-volume production, Gammaflux technology provides the precision and reliability you need to take full control of your hot runner system.



    Discover G25 now
  • ms-sidegate-sealing-ring-600x400
    Hot Runner Side Gating

    The thermal side gate nozzle from Männer proves in demanding, high-volume production that cosmetic gate points, easy assembly, and long-term reliability can be seamlessly combined.

    Even in high-cavity molds, this technology ensures consistent performance and superior part quality – making it the ideal choice when precision and appearance matter most.

    Discover Side Gate
  • Design ohne Titel (1)
    Medical Day 2025

    Medical Day 2025 brought together brilliant minds, inspiring speakers, and a passionate community dedicated to shaping the future of healthcare. From thought-provoking talks to lively networking moments, the day was filled with energy and ideas. Here’s a look back at some of the highlights.

    Get Impressions

We offer the right refurbishment package –
tailored to your mold's needs.

Whether your mold requires only minor adjustments or a full mechanical and functional overhaul: we offer a flexible range of refurbishment solutions to match your goals, timeline, and budget. All packages are carried out by experienced tooling experts using OEM-level standards and documentation. Planned refurbishment reduces unexpected downtime, lowers total cost of ownership, and keeps your production running efficiently.



  • Asthma Inhaler Bottom Case Mold-2
    Mold Refurbishment Light Package

    Our Light Package focuses on essential components to restore reliable performance with minimal downtime:

    • Full refurbishment of the hot runner system

    • Replacement of guiding and centering elements for FH & MH (AS & DS)

    • Warranty renewal of the hot runner system in accordance with Otto Männer GmbH’s general terms and conditions

    This package is ideal for molds still in good condition that require targeted maintenance to ensure consistent part quality and continued process stability.

    Read More
  • maenner-mold-single-16-cav-e-plate-755x680
    Mold Refurbishment Full Package

    Our most comprehensive package restores your mold to peak performance – ideal for extending lifecycle and maximizing output reliability:

    • Complete replacement of cavity stacks

    • New guiding and centering elements

    • Replacement of all wear and tear parts

    • Full cleaning and inspection of the entire mold

    • Final Operational Test (FOT) to validate performance

    • Warranty renewal with 50% of the original new mold conditions – minimum 1 million cycles guaranteed

    This package is recommended when a mold shows extensive wear or reduced precision. It offers a cost-efficient alternative to new mold investment, with high functional reliability.

    Read More
  • adb-molds-reaction-vessel (1)
    Mold Refurbishment Custom Package

    Tailored refurbishment after a comprehensive mold assessment – based on the exact condition and requirements of your mold.

    • On-site assessment by our experts

    • Customized quotation based on actual wear and condition

    • Refurbishment performed at the MS mold plant, using OEM standards

    • Final Operational Test (FOT) ensures mold readiness

    • Warranty renewal after full refurbishment with 50% of the original warranty conditions – minimum 1 million cycles

    Cost transparency & value-added:

    • Refurbishment > €100k → 50% reimbursement of the assessment costs

    • Refurbishment > €200k → 75% reimbursement of the assessment costs

    Optional add-ons:

    • Spare parts packages (mold / hot runner)

    • Stand-alone repairs of damaged components (if feasible)

    • Modifications to meet new production or product requirements

    This package is ideal for complex, high-value molds where a detailed condition-based approach ensures maximum return on investment.

    Read More
  • CITI cube 600x400
    Cube Mold Refurbishment ETW Package

    Planned hot runner maintenance can reduce downtime by up to 70%.


    Read More
  • Cap for Insulin Pen Mold-1
    Mold & Hot Runner Refurbishment Spare Parts Agreement

    Always Ready, Always Reliable: A spare parts agreement with Männer or Foboha ensures that essential components are always available to keep your molds running smoothly. By securing predefined parts in advance, you minimize downtime and increase efficiency.

    Your benefits at a glance:

    • Rapid availability
      Immediate access to critical spare parts – less unplanned downtime, better service performance.

    • Cost efficiency
      Attractive long-term conditions and pricing through fixed contracts.

    • Planning reliability
      Simplified scheduling of maintenance and repairs with assured parts supply.

    • Lower administrative effort
      Reduce time and resources needed for sourcing and procurement

    • Storage costs are covered by Männer/Foboha

    Read More

  •



    Click here
    for the fastest way
    to a quick offer
