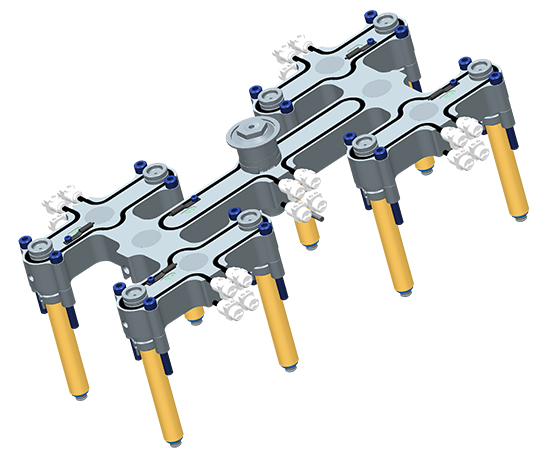

Bolted down manifold
-
-
Bolted down manifold
-

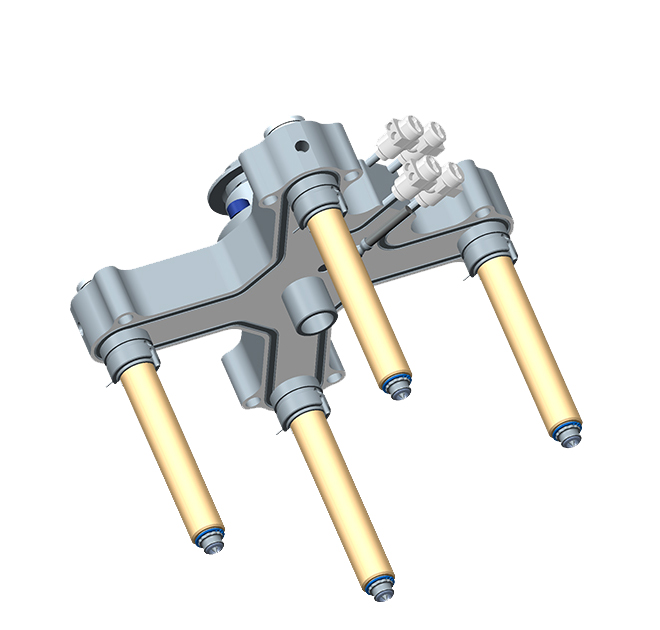

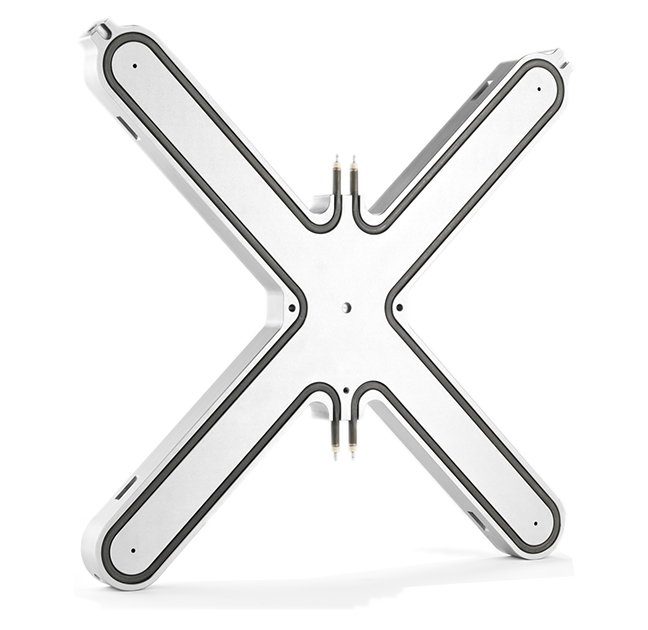

X shape manifold
-
6 points manifold
-

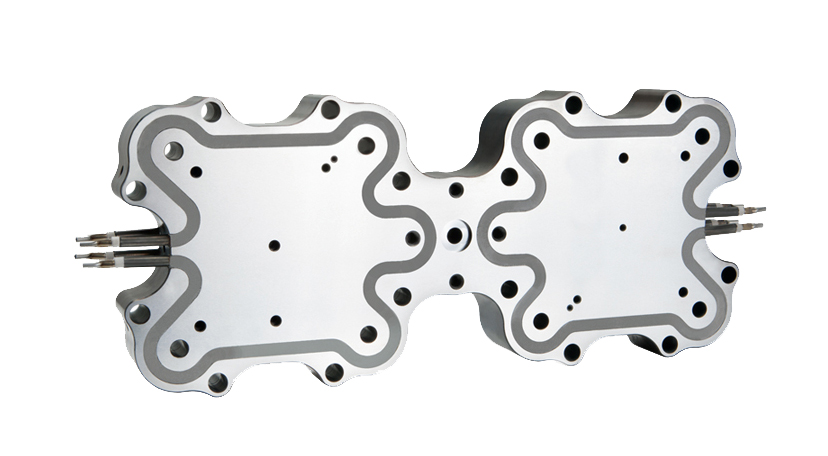

Bolted down manifold
-
Bolted down X shape manifold
ELS Series Injection Systems
The ELS series injection systems, with standard nozzles and accessories, with 1, 2, 4, 6 and 8 drops, are a highly customizable product to follow the project settings.
- Distance between axis of manifolds is freely configurable
- Construction of the manifold can be with or without a “heater cover” depending on the injected material and the transformation temperatures
- Flow channels are sized according to the type and diameter of the nozzle chosen
- Nozzle and injection bushing can be chosen throughout the standard range
- Choice of any valve gate group within the standard Thermoplay range; choice of pin finishing
- Thermocouples are J type and can be insulated or grounded
VS Series Injection Systems
The VS series injection systems, with standard nozzles and accessories, with 4, 8,16 and 8 drops, differs from ELS system for the following characteristics:
- Can be an ‘X’ or ‘H’ shape manifold.
- Available up to 16 drops.
- Only suitable with coverheater.
|
ELS |
ELS |
ELS |
ELS |
ELS |
ELS |
ELS |
ELS |
ELS |
VS |
VS |
VS |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N. nozzles: |
1
|
1 |
2 |
2 |
4 |
4 |
4 |
6 |
8 |
4 |
8 |
16 |
| Interaxes (mm): |
50 to 450 |
40 to 200 |
90 to 500 |
80 to 400 |
90 to 450 |
80 to 400 |
208 to 500 |
300x150, 400x200, 500x250, 600x300 (fixed) |
300x100, 450x150, 600x200, 750x250 (fixed) |
Free |
Free |
Free |
| Manifold height (mm): |
32
|
32 |
32 |
32 |
38 |
32 |
44-52 |
38 |
38 |
38 |
44 - 52 - 62 |
44 - 52 - 62 |
| Valve gate group: |
Yes/No |
Yes/No |
Yes/No |
Yes/No |
Yes/No |
Yes/No |
No |
No |
No |
Yes/No |
Yes/No |
Yes/No |
| Valve gate interaxes (mm): |
60 to 450 |
50 to 200 |
110 to 500 |
90 to 400 |
90 to 450 |
80 to 400 |
- |
- |
- |
Free |
Free |
Free |
| Manifold with valve gate height (mm): |
44 |
44 |
44 |
44 |
44 |
44 |
- |
- |
- |
44 |
44 - 52 - 62 |
44 - 52 - 62 |
| Coverheater: |
Yes/No |
For TF12-17-23-TD18: Yes/No |
Yes/No |
For TF12-17-23-TD18: Yes/No |
Yes/No |
For TF12-17-23-TD18: Yes/No |
Yes |
No |
No |
Yes |
Yes |
Yes |
Key Benefits
Our balanced manifold designs, featuring special conical inserts, allow smooth multilayer channels and direction changes.
Available in a wide range of standard and customized configurations, they ensure optimized melt flow and an even temperature profile for every application.
Made from high-quality steel and engineered with advanced flow analysis, these manifolds deliver precision, reliability, and top performance for all injection systems.
-

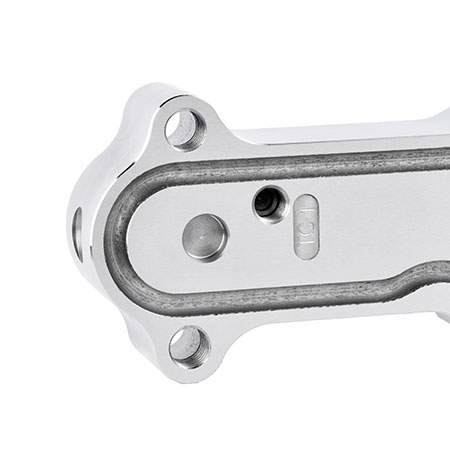

Conical PlugBalanced manifold layouts with special conical plug inserts enable multilayer flow channels and smooth direction changes, ensuring optimal melt balance and consistent performance across all cavities. -
ConfigurationsA wide range of standard and customized configurations is available, each featuring optimized melt channels designed to deliver maximum efficiency and perfect adaptation to every application’s requirements.
Download Available Configuration
-
Temperature ProfileThe manifold ensures an even temperature profile across all applications, minimizing thermal variations and optimizing the flow of molten plastic. This uniform heat distribution enhances part quality, reduces cycle times, and extends the overall lifespan of the system. -
High Quality SteelThe steel used for manufacturing plastic injection manifolds is of the highest quality, carefully selected for its resistance to high temperatures and corrosion. Its excellent dimensional stability ensures reliable performance and long-lasting durability even under the most demanding operating conditions. -
Flow AnalisysInjection systems from Thermoplay are defined following careful analysis of the injection material, the size and weight of the item to be moulded, and the expected moulding cycle.
Using flow-analysis software and 3D simulation techniques, the company balances the hot runner carefully to ensure perfect cavity filling for precise production of part details.
Conical plugs inserted in all the manifolds eliminate the possibility of stagnation zones. -

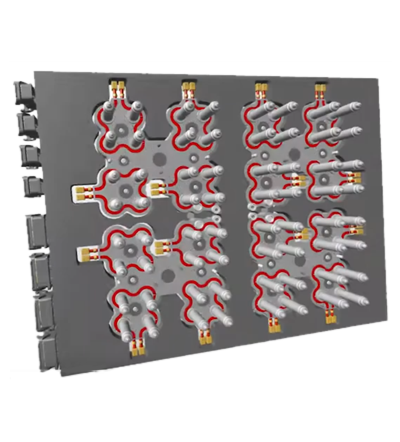

BalancingThe flow paths having the same length and channel sections create a natural balance, while the distributed filling pressure in all the mould chambers ensures moulding of identical parts.
The special structure of the manifold allows the nozzles to be assembled at low temperatures, to avoid out-of-axis movements while the operating temperature is reached.
ELS Series Injection Systems
The ELS series injection systems, with standard nozzles and accessories, with 1, 2, 4, 6 and 8 drops, are a highly customizable product to follow the project settings.
- Distance between axis of manifolds is freely configurable
- Construction of the manifold can be with or without a “heater cover” depending on the injected material and the transformation temperatures
- Flow channels are sized according to the type and diameter of the nozzle chosen
- Nozzle and injection bushing can be chosen throughout the standard range
- Choice of any valve gate group within the standard Thermoplay range; choice of pin finishing
- Thermocouples are J type and can be insulated or grounded
Characteristics |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
|
N. nozzles: |
1 |
2 |
4 |
4 |
6 |
8 |
|
Interaxes (mm): |
50 to 450 |
90 to 500 |
90 to 450 |
208 to 500 |
300x150, 400x200, 500x250, 600x300 (fixed) |
300x100, 450x150, 600x200, 750x250 (fixed) |
|
Manifold height (mm): |
32 |
32 |
38 |
44-52 |
38 |
38 |
|
Valve gate group: |
Yes/No |
Yes/No |
Yes/No |
No |
No |
No |
|
Valve gate interaxes (mm): |
60 to 450 |
110 to 500 |
90 to 450 |
- |
- |
- |
|
Manifold with valve gate height (mm): |
44 |
44 |
44 |
- |
- |
- |
|
Coverheater: |
Yes/No |
Yes/No |
Yes/No |
Yes |
No |
No |
ELS Bolted Down
The bolted down manifolds are available with or without heater covers, and can be configured with TF12 – TF17 – TF23 and TD18 nozzles. They are available only with heater covers for the TD22 nozzles.
The Webcreator allows to configure bolted down injection systems with 1, 2 and 4 nozzles. Configurations over 4 nozzles are possible only on demand as special systems.
The pressure pads located between manifold and back plate, have been eliminated in the bolted down systems, with the following benefits:
- improved safety against the risk of leakages due to wrong process parameters (cold starts, interruption of the cooling system in the hot half plates).
- decreasing of power consumption.
- eliminate the transfer of mechanical stresses from the injection system to the mould.
- more homogeneous temperature distribution in the hot half plates.
The new compact design of the bolted down manifolds and the injection bushing allows to decrease the overall dimension of the injection system by 40% approximately.
Characteristics |
|
|
|
|---|---|---|---|
|
N. nozzles: |
1 |
2 |
4 |
|
Interaxes (mm): |
40 to 200 |
80 to 400 |
80 to 400 |
|
Manifold height (mm): |
32 |
32 |
32 |
|
Valve gate group: |
Yes/No |
Yes/No |
Yes/No |
|
Valve gate interaxes (mm): |
50 to 200 |
90 to 400 |
80 to 400 |
|
Manifold with valve gate height (mm): |
44 |
44 |
44 |
|
Coverheater: |
For TF12-17-23-TD18: Yes/No |
For TF12-17-23-TD18: Yes/No |
For TF12-17-23-TD18: Yes/No |
VS Series Injection Systems
The VS series injection systems, with standard nozzles and accessories, with 4, 8,16 and 8 drops, differs from ELS system for the following characteristics:
- Can be an ‘X’ or ‘H’ shape manifold.
- Available up to 16 drops.
- Only suitable with coverheater.
Characteristics |
|
|
|
|---|---|---|---|
|
N. nozzles: |
4 |
8 |
16 |
|
Interaxes (mm): |
Free |
Free |
Free |
|
Manifold height (mm): |
38 |
44 - 52 - 62 |
44 - 52 - 62 |
|
Valve gate group: |
Yes/No |
Yes/No |
Yes/No |
|
Valve gate interaxes (mm): |
Free |
Free |
Free |
|
Manifold with valve gate height (mm): |
44 |
44 - 52 - 62 |
44 - 52 - 62 |
|
Coverheater: |
Yes |
Yes |
Yes |
-
Innovation, precision, and reliability
Our hot runner systems are engineered to optimize every stage of the injection molding process, ensuring high performance and consistent quality across all applications.
For detailed technical information and product specifications, please refer to the dedicated section of the technical catalog.
-
Innovation, precision, and reliability
Our hot runner systems are engineered to optimize every stage of the injection molding process, ensuring high performance and consistent quality across all applications.
For detailed technical information and product specifications, please refer to the dedicated section of the technical catalog.
