La nuova Performance Line è il risultato di quasi un decennio di sviluppo dedicato all'interno di Molding Solutions e offre un portafoglio di ugelli completo ed economico. Include sistemi a canale caldo a flusso libero, sistemi a otturazione e soluzioni a iniezione laterale.
| Image | Name | Description | Product Catalog |
3D data | Flow Bore Ø mm |
Cut out Ø mm |
Support Ring Ø mm |
Sealing Ø mm |
|---|---|---|---|---|---|---|---|---|
|
MSG-R1-23-TS5 | Thermal Side Gate, Radial 1-point | 3 | 26 | 23 | 5 | ||
|
MSG-R2-28-TS5 | Thermal Side Gate, Radial 2-point | 3 | 35 | 28 | 5 | ||
|
MSG-R4-28-TS5 | Thermal Side Gate, Radial 4-point | 3 | 35 | 28 | 5 | ||
|
MSG-R8-38-TS5 | Thermal Side Gate, Radial 8-point | 3 | 47 | 38 | 5 | ||
|
MSG-L2+2-28 | Thermal Side Gate, Linear 2-point | 3 | 35 | 28 | 5 | ||
|
MSG-L4+4-30 | Thermal Side Gate, Linear 4-point | 3 | 35 | 30 | 5 |
| Image | Name | Description | Product Catalog |
3D data | Flow Bore Ø mm |
Cut out Ø mm |
Support Ring Ø mm |
Sealing Ø mm |
|---|---|---|---|---|---|---|---|---|
|
MSG-R1-27-TS8 | Thermal Side Gate, Radial 1-point | 5 | 30 | 27 | 8 | ||
|
MSG-R2-34-TS8 | Thermal Side Gate, Radial 2-point | 5 | 43 | 34 | 8 | ||
|
MSG-R4-34-TS8 | Thermal Side Gate, Radial 4-point | 5 | 43 | 34 | 8 |
| Image | Name | Description | Product Catalog |
3D data | Flow Bore Ø mm |
Cut out Ø mm |
Support Ring Ø mm |
Sealing Ø mm |
|---|---|---|---|---|---|---|---|---|
|
MPN-08-24-MT10-2 | Thermal Gate Nozzle, Multi Tip |
5 | 18 | 24 | 8 | ||
|
MPN-08-24-MT10-3 | Thermal Gate Nozzle, Multi Tip |
5 | 18 | 24 | 8 | ||
.png)
|
MMPN-08-24-2_B (-TS08/-TX08/-TXX08) | Thermal Gate Multi Nozzle (- different tips) |
5 | 18 | TBD | 8 | ||
|
MPN-08-24-AT10 | Thermal Gate Nozzle, Angled Tip |
5 | 18 | 24 | 8 | ||
|

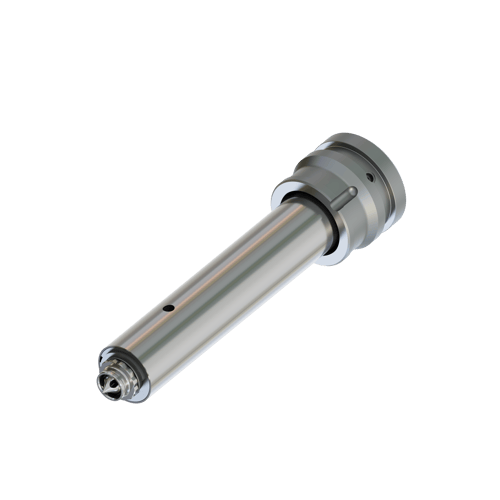

MPN-08-24-TS8 | Thermal Gate Nozzle, Torpedo Standard Tip |
MPN-08-24-TS8 | 5 | 18 | 24 | 8 | |
|
MPN-08-24-TX8 | Thermal Gate Nozzle, Torpedo Extended Tip |
MPN-08-24-TX8 | 5 | 18 | 24 | 8 | |
|
MPN-08-24-TXX8 | Thermal Gate Nozzle, Torpedo Extended Tip |
MPN-08-24-TXX8 | 5 | 18 | 24 | 8 | |
|
|
MMPN-08-24-3_B (-TS08/-TX08/-TXX08) | Thermal Gate Multi Nozzle (- different tips) |
5 | 18 | TBD | 8 | ||
.png)
|
MMPN-08-24-4_B (-TS08/-TX08/-TXX08) | Thermal Gate Multi Nozzle (- different tips) |
5 | 18 | TBD | 8 |
| Image | Name | Description | Product Catalog |
3D data | Flow Bore Ø mm |
Cut out Ø mm |
Support Ring Ø mm |
Sealing Ø mm |
|---|---|---|---|---|---|---|---|---|
|
MPN-08-24-VS8 | Valve Gate Nozzle, Standard Tip |
5 | 18 | 24 | 8 | ||
|
MPN-08-24-VX8 | Valve Gate Nozzle, Extended Tip |
5 | 18 | 24 | 8 | ||
|

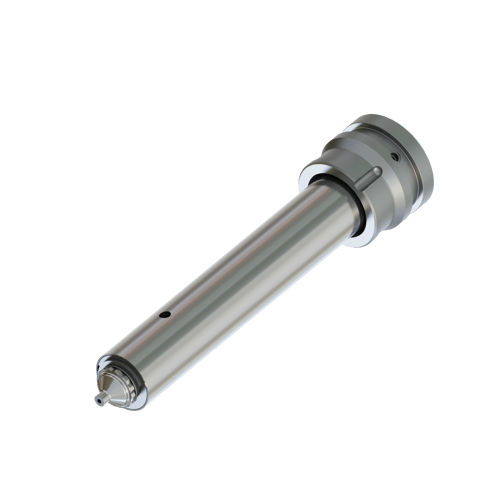

MPN-08-24-VP3 | Valve Gate Nozzle, Plunged Through Tip |
5 | 18 | 24 | 8 | ||
|
|
MPN-08-24-VSA8 | Valve Gate Nozzle, Advanced Tip |
5 | 18 | 24 | 8 |
| Image | Name | Description | Product Catalog |
3D data | Flow Bore Ø mm |
Cut out Ø mm |
Support Ring Ø mm |
Sealing Ø mm |
|---|---|---|---|---|---|---|---|---|
|
MSG-R1-32-TS10 | Thermal Side Gate, Radial 1-point | 5 | 43 | 32 | 10 | ||
|
MSG-R2-40-TS10 | Thermal Side Gate, Radial 2-point | 5 | 43 | 40 | 10 | ||
|
MSG-R4-40-TS10 | Thermal Side Gate, Radial 4-point | 5 | 43 | 40 | 10 |
| Image | Name | Description | Product Catalog |
3D data | Flow Bore Ø mm |
Cut out Ø mm |
Support Ring Ø mm |
Sealing Ø mm |
|---|---|---|---|---|---|---|---|---|
|

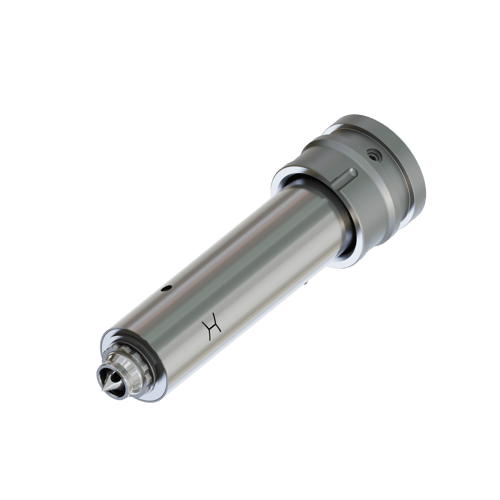

MPN-10-29-TS10 | Thermal Gate Nozzle, Torpedo Standard Tip |
7 | 24 | 29 | 10 | ||
|
MPN-10-29-TX10 | Thermal Gate Nozzle, Torpedo Extended Tip |
7 | 24 | 29 | 10 | ||
|
MPN-10-29-TXX10 | Thermal Gate Nozzle, Torpedo Extended Tip |
7 | 24 | 29 | 10 | ||
|
MPN-10-29-MT12-2 | Thermal Gate Nozzle, Multi Tip |
7 | 24 | 29 | 10 | ||
|
MPN-10-29-MT12-3 | Thermal Gate Nozzle, Multi Tip |
7 | 24 | 29 | 10 | ||
.png)
|
MMPN-10-29-2_B (-TS10/-TX10/-TXX10) | Thermal Gate Multi Nozzle (-different tips) |
7 | 24 | TBD | 10 | ||
|
MPN-10-29-AT12 | Thermal Gate Nozzle, Angled Tip |
7 | 24 | 29 | 10 | ||
|
|
MMPN-10-29-3_B (-TS10/-TX10/-TXX10) | Thermal Gate Multi Nozzle (-different tips) |
7 | 24 | TBD | 10 | ||
|
|
MMPN-10-29-4_B (-TS10/-TX10/-TXX10) | Thermal Gate Multi Nozzle (-different tips) |
7 | 24 | TBD | 10 |
| Image | Name | Description | Product Catalog |
3D data | Flow Bore Ø mm |
Cut out Ø mm |
Support Ring Ø mm |
Sealing Ø mm |
|---|---|---|---|---|---|---|---|---|
|
MPN-10-29-VS10 | Valve Gate Nozzle, Standard Tip |
7 | 24 | 29 | 10 | ||
|
MPN-10-29-VX10 | Valve Gate Nozzle, Extended Tip |
7 | 24 | 29 | 10 | ||
|
MPN-10-29-VP4 | Valve Gate Nozzle, Plunged Through Tip |
7 | 24 | 29 | 10 | ||
|
MPN-10-29-VSA10 | Valve Gate Nozzle, Advanced Tip |
7 | 24 | 29 | 10 |
I sistemi a canale caldo sono il cuore di uno stampaggio efficiente — ma anche i migliori componenti si consumano. Il nostro servizio di revisione riporta le parti usurate alle condizioni ottimali, assicurando un controllo preciso della temperatura, un flusso migliorato e una qualità costante dei pezzi. Evita fermi non programmati e sostituzioni costose, mantenendo la produzione fluida.
.png)
Dalle riparazioni mirate a una revisione completa, i nostri servizi post-vendita garantiscono performance elevate e massimo tempo di attività. Con un piano di manutenzione programmato, si possono evitare guasti inaspettati, prolungare la vita utile dello stampo e ridurre sensibilmente i costi a lungo termine. Offriamo supporto esperto, secondo le tue esigenze e il tuo budget.
Il nostro programma di formazione di due giorni combina teoria approfondita con pratica in officina. È pensato per professionisti che vogliono acquisire competenze su come installare, mantenere e riparare efficacemente i sistemia canale caldo.
Dai fondamenti alle competenze pratiche!
Una gestione precisa della temperatura è fondamentale per produrre componenti uniformi e di alta qualità, mantenendo bassi i tassi di scarto e alta la redditività.
I nostri sistemi di controllo Gammaflux garantiscono la massima precisione, stabilità e un funzionamento intuitivo. Con un monitoraggio intelligente e un controllo adattativo della temperatura, puoi ottimizzare il flusso della materia fusa, ridurre i tempi di inattività e aumentare l’efficienza complessiva.
Che si tratti di piccole o grandi produzioni, la tecnologia Gammaflux offre la precisione e l'affidabilità necessarie per controllare perfettamente il vostro sistema a canale caldo.
.jpg)
Il Medical Day 2025 ha riunito esperti, menti brillanti e una community dedicata al futuro del sistema sanitario.
.
La tecnologia a iniezione laterale diretta di Männer dimostra, nelle applicazioni ad alto volume più esigenti, che è possibile combinare senza compromessi punto di iniezione estetico, montaggio semplice e affidabilità a lungo termine.
Anche negli stampi più complessi, questa tecnologia garantisce prestazioni costanti e qualità dei pezzi eccezionale, rappresentando la scelta ideale quando precisione ed estetica sono ugualmente determinanti.
Whether your mold requires only minor adjustments or a full mechanical and functional overhaul: we offer a flexible range of refurbishment solutions to match your goals, timeline, and budget. All packages are carried out by experienced tooling experts using OEM-level standards and documentation. Planned refurbishment reduces unexpected downtime, lowers total cost of ownership, and keeps your production running efficiently.
Our Light Package focuses on essential components to restore reliable performance with minimal downtime:
Full refurbishment of the hot runner system
Replacement of guiding and centering elements for FH & MH (AS & DS)
Warranty renewal of the hot runner system in accordance with Otto Männer GmbH’s general terms and conditions
This package is ideal for molds still in good condition that require targeted maintenance to ensure consistent part quality and continued process stability.
Our most comprehensive package restores your mold to peak performance – ideal for extending lifecycle and maximizing output reliability:
Complete replacement of cavity stacks
New guiding and centering elements
Replacement of all wear and tear parts
Full cleaning and inspection of the entire mold
Final Operational Test (FOT) to validate performance
Warranty renewal with 50% of the original new mold conditions – minimum 1 million cycles guaranteed
This package is recommended when a mold shows extensive wear or reduced precision. It offers a cost-efficient alternative to new mold investment, with high functional reliability.
.png)
Tailored refurbishment after a comprehensive mold assessment – based on the exact condition and requirements of your mold.
On-site assessment by our experts
Customized quotation based on actual wear and condition
Refurbishment performed at the MS mold plant, using OEM standards
Final Operational Test (FOT) ensures mold readiness
Warranty renewal after full refurbishment with 50% of the original warranty conditions – minimum 1 million cycles
Cost transparency & value-added:
Refurbishment > €100k → 50% reimbursement of the assessment costs
Refurbishment > €200k → 75% reimbursement of the assessment costs
Optional add-ons:
Spare parts packages (mold / hot runner)
Stand-alone repairs of damaged components (if feasible)
Modifications to meet new production or product requirements
This package is ideal for complex, high-value molds where a detailed condition-based approach ensures maximum return on investment.
Planned hot runner maintenance can reduce downtime by up to 70%.
Always Ready, Always Reliable: A spare parts agreement with Männer or Foboha ensures that essential components are always available to keep your molds running smoothly. By securing predefined parts in advance, you minimize downtime and increase efficiency.
Your benefits at a glance:
Rapid availability
Immediate access to critical spare parts – less unplanned downtime, better service performance.
Cost efficiency
Attractive long-term conditions and pricing through fixed contracts.
Planning reliability
Simplified scheduling of maintenance and repairs with assured parts supply.
Lower administrative effort
Reduce time and resources needed for sourcing and procurement
Hot runner systems are the heart of efficient injection molding — but even the best equipment wears over time. Our refurbishment service restores worn or damaged components to optimal condition, ensuring precise temperature control, improved flow, and consistent product quality. Avoid unplanned downtime and costly replacements while keeping your production running smoothly.
Our two-day training program combines in-depth theoretical instruction with hands-on practice directly in the workshop. It is designed for professionals who want to understand not only the principles of hot runner systems, but also how to install, maintain, and service them effectively.
From Fundamentals to Practical Expertise!
Precise temperature management is the key to producing consistent, high-quality parts while keeping scrap rates low and profitability high.
Our advanced Gammaflux control systems deliver unmatched accuracy, stability, and user-friendly operation. With intelligent temperature monitoring and adaptive control, you can ensure optimal melt flow, reduce downtime, and increase the overall efficiency of your production process.
Whether you’re running small-scale projects or high-cavity, high-volume production, Gammaflux technology provides the precision and reliability you need to take full control of your hot runner system.
The thermal side gate nozzle from Männer proves in demanding, high-volume production that cosmetic gate points, easy assembly, and long-term reliability can be seamlessly combined.
Even in high-cavity molds, this technology ensures consistent performance and superior part quality – making it the ideal choice when precision and appearance matter most.
Medical Day 2025 brought together brilliant minds, inspiring speakers, and a passionate community dedicated to shaping the future of healthcare. From thought-provoking talks to lively networking moments, the day was filled with energy and ideas. Here’s a look back at some of the highlights.
Whether your mold requires only minor adjustments or a full mechanical and functional overhaul: we offer a flexible range of refurbishment solutions to match your goals, timeline, and budget. All packages are carried out by experienced tooling experts using OEM-level standards and documentation. Planned refurbishment reduces unexpected downtime, lowers total cost of ownership, and keeps your production running efficiently.
Our Light Package focuses on essential components to restore reliable performance with minimal downtime:
Full refurbishment of the hot runner system
Replacement of guiding and centering elements for FH & MH (AS & DS)
Warranty renewal of the hot runner system in accordance with Otto Männer GmbH’s general terms and conditions
This package is ideal for molds still in good condition that require targeted maintenance to ensure consistent part quality and continued process stability.
Our most comprehensive package restores your mold to peak performance – ideal for extending lifecycle and maximizing output reliability:
Complete replacement of cavity stacks
New guiding and centering elements
Replacement of all wear and tear parts
Full cleaning and inspection of the entire mold
Final Operational Test (FOT) to validate performance
Warranty renewal with 50% of the original new mold conditions – minimum 1 million cycles guaranteed
This package is recommended when a mold shows extensive wear or reduced precision. It offers a cost-efficient alternative to new mold investment, with high functional reliability.
Tailored refurbishment after a comprehensive mold assessment – based on the exact condition and requirements of your mold.
On-site assessment by our experts
Customized quotation based on actual wear and condition
Refurbishment performed at the MS mold plant, using OEM standards
Final Operational Test (FOT) ensures mold readiness
Warranty renewal after full refurbishment with 50% of the original warranty conditions – minimum 1 million cycles
Cost transparency & value-added:
Refurbishment > €100k → 50% reimbursement of the assessment costs
Refurbishment > €200k → 75% reimbursement of the assessment costs
Optional add-ons:
Spare parts packages (mold / hot runner)
Stand-alone repairs of damaged components (if feasible)
Modifications to meet new production or product requirements
This package is ideal for complex, high-value molds where a detailed condition-based approach ensures maximum return on investment.
Planned hot runner maintenance can reduce downtime by up to 70%.
Always Ready, Always Reliable: A spare parts agreement with Männer or Foboha ensures that essential components are always available to keep your molds running smoothly. By securing predefined parts in advance, you minimize downtime and increase efficiency.
Your benefits at a glance:
Rapid availability
Immediate access to critical spare parts – less unplanned downtime, better service performance.
Cost efficiency
Attractive long-term conditions and pricing through fixed contracts.
Planning reliability
Simplified scheduling of maintenance and repairs with assured parts supply.
Lower administrative effort
Reduce time and resources needed for sourcing and procurement
